Product Specs

• Product Details
  •

    Series	15 Series, Ready Tube
    Material	Aluminum
    Grade	6105-T5
    Process	Milled
    Finish	Anodize
    Color	Black
    A	4.523"
    B	.750"
    C	.594"
    D	1.668"
    E	.328"
    F	5/16-18
    G	.250"
    H	.250"
    J	1.523"
    K	1.500"
    L	.590"
    M	.840"
    N	1.500"
    Weight	0.199000

• Description

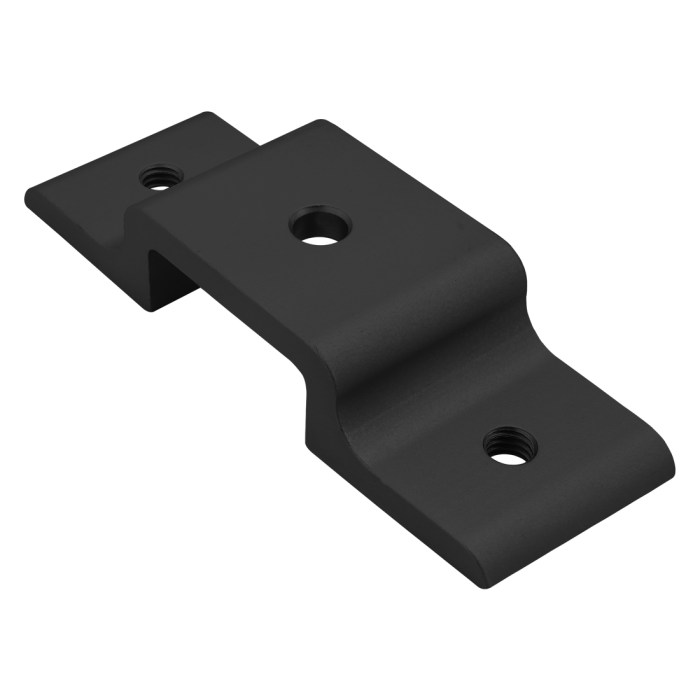

  • The double arm narrow panel retainer is used to mount a panel when it is recessed within the T-slot or on the profile frame. It is a strong fastening option that is simple to use, provides stability and reduces vibration. The double arm narrow panel retainer is perfect in instances when a profile is connecting two adjacent panels. It requires a drill through machining service on the panel.

• Sugg. Hardware

  • Mount to T-Slot

    Series	Part Number	Qty	Description	Select Qty / Add To Cart
    	3320	1	Bolt Assembly: 5/16-18 x .687" Black FBHSCS with Slide-In Economy T-Nut - Offset Thread - Black Zinc

• How To
• CAD Files
  • Generate

    ** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
