25-6792
25 Series Double-Keyed UniBearing™ Pad
25 Series Double-Keyed UniBearing™ Pad

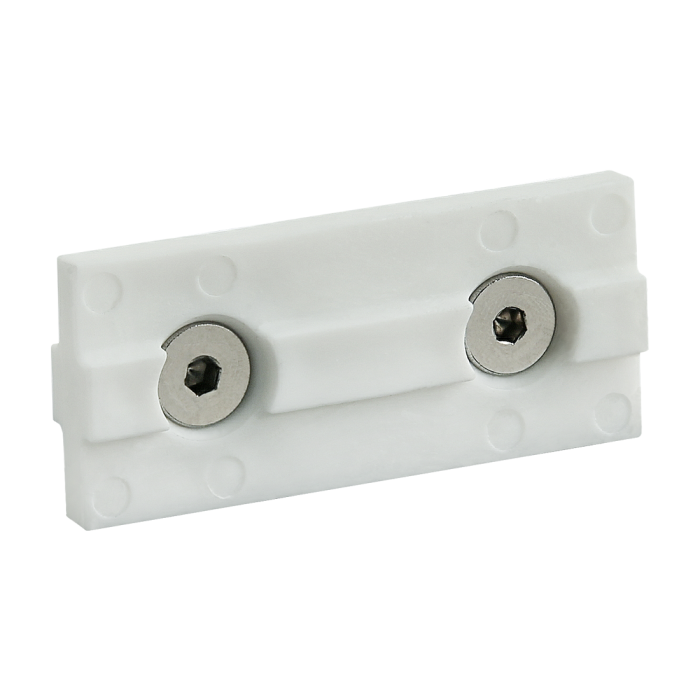

The double-keyed UniBearing™ pad is commonly used with a UniBearing™ to create custom bearings. It has a double key and mounts to the profile using stainless steel flathead socket cap screws. It provides a flat bearing and quick change-out as well as being designed with rounded corners on the molded pad for easy installation.
The double-keyed UniBearing™ pad is commonly used with a UniBearing™ to create custom bearings. It has a double key and mounts to the profile using stainless steel flathead socket cap screws. It provides a flat bearing and quick change-out as well as being designed with rounded corners on the molded pad for easy installation.
| ESD Safe | No |
| Series | 25 Series |
| Material | UHMW PE |
| Process | Injection Molded |
| Finish | Smooth |
| Color | White |
| A | 20.62mm |
| B | 10.31mm |
| C | 10.98mm |
| D | 25.40mm |
| E | 4.37mm |
| F | 7.62mm |
| G | 47.37mm |
| H | 3.81mm |
| J | 7.19mm |
| K | 6.25mm |
| L | 1.91mm |
| Weight | 0.028000 |
The double-keyed UniBearing™ pad is commonly used with a UniBearing™ to create custom bearings. It has a double key and mounts to the profile using stainless steel flathead socket cap screws. It provides a flat bearing and quick change-out as well as being designed with rounded corners on the molded pad for easy installation.
Product Specs
- Product Details
-
ESD Safe No Series 25 Series Material UHMW PE Process Injection Molded Finish Smooth Color White A 20.62mm B 10.31mm C 10.98mm D 25.40mm E 4.37mm F 7.62mm G 47.37mm H 3.81mm J 7.19mm K 6.25mm L 1.91mm Weight 0.028000
-
- Description
The double-keyed UniBearing™ pad is commonly used with a UniBearing™ to create custom bearings. It has a double key and mounts to the profile using stainless steel flathead socket cap screws. It provides a flat bearing and quick change-out as well as being designed with rounded corners on the molded pad for easy installation.
-
