()25-5050-Black-FB

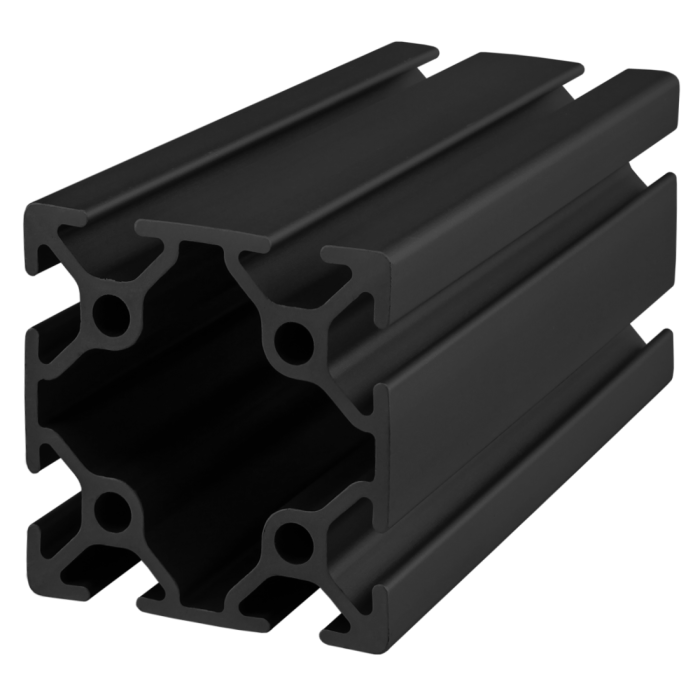

50mm X 50mm T-Slotted Profile - Eight Open T-Slots
50mm X 50mm T-Slotted Profile - Eight Open T-Slots
25-5050-Black-FB is a 50mm x 50mm metric 25 series square T-slot profile with eight open T-slots, two on each 50mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 25-5050-Black-FB profile is compatible with 25 series fasteners and has a center cavity that can be pressurized up to 1.034 N/mm2 (150 psi). The eight open T-slots, strength, and ability to pressurize this profile make it a great choice for automation applications, machine frames and workstations.
Price Per Millimeter
$0.0738These similar products have a shorter lead time:
25-5050-Black-FB is a 50mm x 50mm metric 25 series square T-slot profile with eight open T-slots, two on each 50mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 25-5050-Black-FB profile is compatible with 25 series fasteners and has a center cavity that can be pressurized up to 1.034 N/mm2 (150 psi). The eight open T-slots, strength, and ability to pressurize this profile make it a great choice for automation applications, machine frames and workstations.
-
End Taps
-
Counterbores
-
Access Holes
-
Mitercuts
No Applied Machining
- Four Hole End Tap
1/4-20 D x 28.58mm ↧
Price: $10.92 - Four Hole End Tap
M6 x 1.00 D x 28.58mm ↧
Price: $10.92
- .219" D accesshole
25-7051 | Price: $2.79
- 0° to 60° Mitercut
Price: $5.87
See here for details
In stock
Total Price
................................................................................................................................Max Length (inches) | 238.188976 |
Series | 25 Series |
Material | Aluminum |
Grade | 6005A – T61 |
Finish | Anodize |
Color | Black |
Drop Lock | 2° |
Moment of Inertia - IX | 21.1231 cm⁴ |
Moment of Inertia - IY | 21.1231 cm⁴ |
Surface Area | 7.487 Sq cm |
Yield Strength | 241.1 N/ Sq. mm |
Modulus of Elasticity | 70,326.5 N/Sq. mm |
Weight lbs | 0.1131 per inch |
Weight | 0.113100 |
25-5050-Black-FB is a 50mm x 50mm metric 25 series square T-slot profile with eight open T-slots, two on each 50mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 25-5050-Black-FB profile is compatible with 25 series fasteners and has a center cavity that can be pressurized up to 1.034 N/mm2 (150 psi). The eight open T-slots, strength, and ability to pressurize this profile make it a great choice for automation applications, machine frames and workstations.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
Max Length (inches) 238.188976 Series 25 Series Material Aluminum Grade 6005A – T61 Finish Anodize Color Black Drop Lock 2° Moment of Inertia - IX 21.1231 cm^4 Moment of Inertia - IY 21.1231 cm^4 Surface Area 7.487 Sq cm Yield Strength 241.1 N/ Sq. mm Modulus of Elasticity 70,326.5 N/Sq. mm Weight lbs 0.1131 per inch Weight 0.113100
-
- Description
25-5050-Black-FB is a 50mm x 50mm metric 25 series square T-slot profile with eight open T-slots, two on each 50mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 25-5050-Black-FB profile is compatible with 25 series fasteners and has a center cavity that can be pressurized up to 1.034 N/mm2 (150 psi). The eight open T-slots, strength, and ability to pressurize this profile make it a great choice for automation applications, machine frames and workstations.
