()25-5010

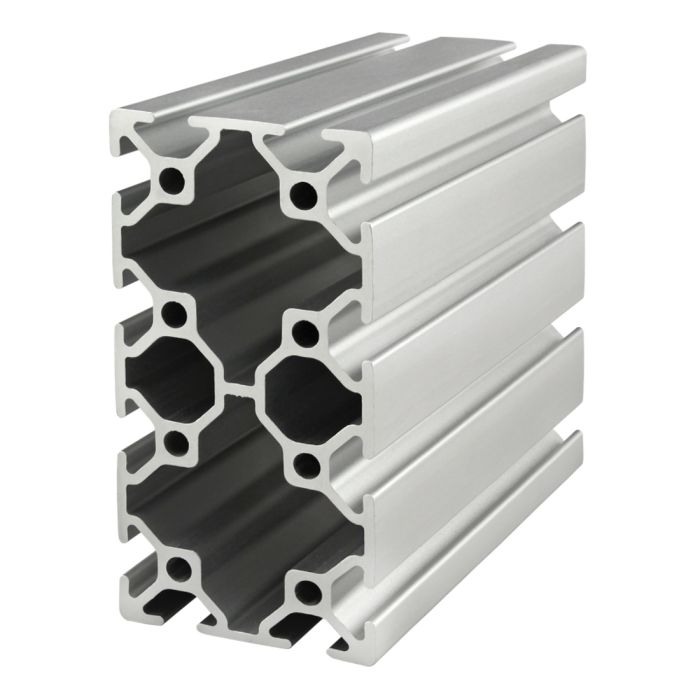

50mm X 100mm T-Slotted Profile - Twelve Open T-Slots
50mm X 100mm T-Slotted Profile - Twelve Open T-Slots
25-5010 is a 50mm x 100mm metric 25 series rectangular T-slot profile with twelve open T-slots, two on each 50mm face and four on each 100mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 25-5010 profile is compatible with 25 series fasteners, and has center cavities that can be pressurized up to 1.034 N/mm2 (150 psi). The twelve open T-slots, strength, and ability to pressurize this profile make it a great choice for automation applications, machine frames and workstations.
Price Per Millimeter
$0.058425-5010 is a 50mm x 100mm metric 25 series rectangular T-slot profile with twelve open T-slots, two on each 50mm face and four on each 100mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 25-5010 profile is compatible with 25 series fasteners, and has center cavities that can be pressurized up to 1.034 N/mm2 (150 psi). The twelve open T-slots, strength, and ability to pressurize this profile make it a great choice for automation applications, machine frames and workstations.
-
End Taps
-
Counterbores
-
Access Holes
-
Mitercuts
No Applied Machining
- Eight Hole End Tap
1/4-20 D x 28.58mm ↧
Price: $21.66 - Eight Hole End Tap
M6 x 1.00 D x 28.58mm ↧
Price: $21.66
- .219" D accesshole
25-7051 | Price: $2.79
- 0° to 45° Mitercut
Price: $6.21
See here for details
In stock
Total Price
................................................................................................................................Max Length (inches) | 238.188976 |
Series | 25 Series |
Material | Aluminum |
Grade | 6005A – T61 |
Finish | Anodize |
Color | Clear |
Drop Lock | 2° |
Moment of Inertia - IX | 132.0109 cm⁴ |
Moment of Inertia - IY | 39.1136 cm⁴ |
Surface Area | 13.743 Sq cm |
Yield Strength | 241.1 N/ Sq. mm |
Modulus of Elasticity | 70,326.5 N/Sq. mm |
Weight lbs | 0.2075 per inch |
Weight | 0.207500 |
25-5010 is a 50mm x 100mm metric 25 series rectangular T-slot profile with twelve open T-slots, two on each 50mm face and four on each 100mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 25-5010 profile is compatible with 25 series fasteners, and has center cavities that can be pressurized up to 1.034 N/mm2 (150 psi). The twelve open T-slots, strength, and ability to pressurize this profile make it a great choice for automation applications, machine frames and workstations.
Product Specs
- Product Details
-
Max Length (inches) 238.188976 Series 25 Series Material Aluminum Grade 6005A – T61 Finish Anodize Color Clear Drop Lock 2° Moment of Inertia - IX 132.0109 cm^4 Moment of Inertia - IY 39.1136 cm^4 Surface Area 13.743 Sq cm Yield Strength 241.1 N/ Sq. mm Modulus of Elasticity 70,326.5 N/Sq. mm Weight lbs 0.2075 per inch Weight 0.207500
-
- Description
25-5010 is a 50mm x 100mm metric 25 series rectangular T-slot profile with twelve open T-slots, two on each 50mm face and four on each 100mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 25-5010 profile is compatible with 25 series fasteners, and has center cavities that can be pressurized up to 1.034 N/mm2 (150 psi). The twelve open T-slots, strength, and ability to pressurize this profile make it a great choice for automation applications, machine frames and workstations.
- CAD Files
-
