Product Specs

• Product Details
  •

    Series	Metric
    Material	Plastic
    Finish	Nylon
    Color	White
    Type	n/a
    Mfg Standard	n/a

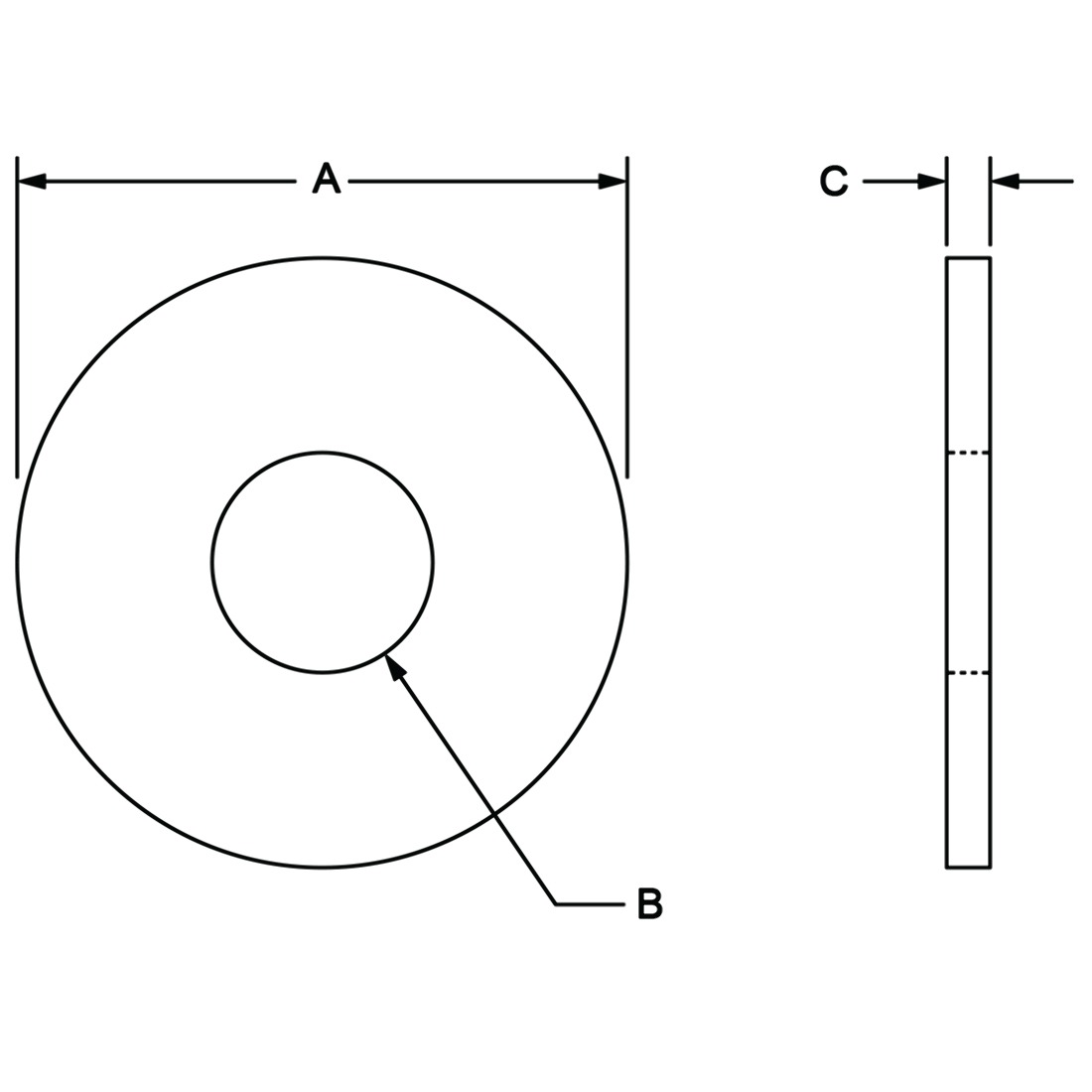

    A	13.84mm
    B	9.22mm
    C	1.27mm
    Weight	0.004000
    XDIY Download Project Name	N/A
