25-3363
25 Series M5 Standard Anchor Fastener Assembly

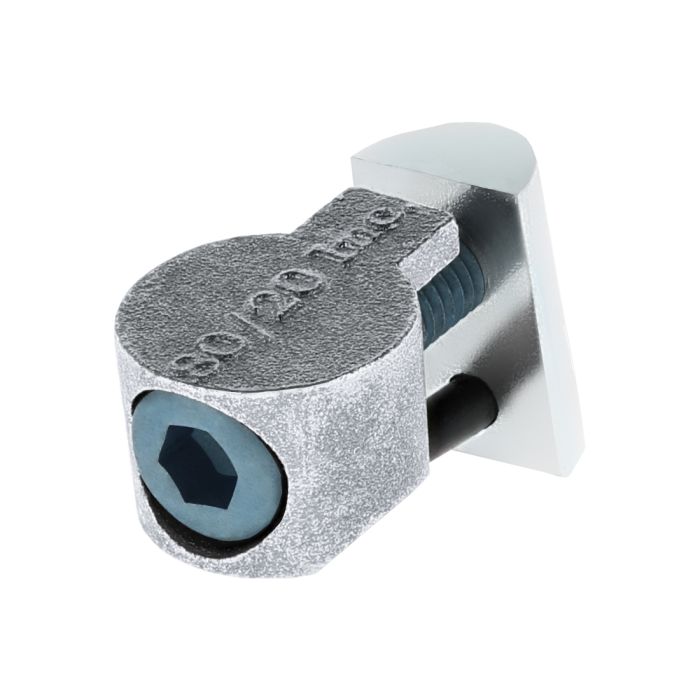

The standard anchor fastener assembly is comprised of a socket head cap screw, cam, and T-nut. It is one of the strongest internal fastening methods, offering a long-lasting connection. The anchor fastener provides infinite positioning along the mating profile’s T-slot, allowing a large degree of adjustability. The anchor fastener provides 90 degree, flush, vibration resistant connections, especially convenient where space restrictions apply. This connection method requires a counterbore machining service on the mounting profile. Additional Information: Cams are available separately (without the socket head cap screw and T-nut) for instances where you want to create your own custom assembly.
| ESD Safe | Yes |
| Series | 25 Series |
| T-Nut | Roll-in w/ Flex Handle |
| Material | Zinc |
| Cam Color | Bright |
| A | 18.54mm |
| B | 6.22mm |
| C | 10.03mm |
| D | 5.08mm |
| E | 14.27mm |
| F | 15.74mm |
| G | 10.31mm |
| H | M5 X 18mm SHCS |
| Weight | 0.035000 |
