25-3183

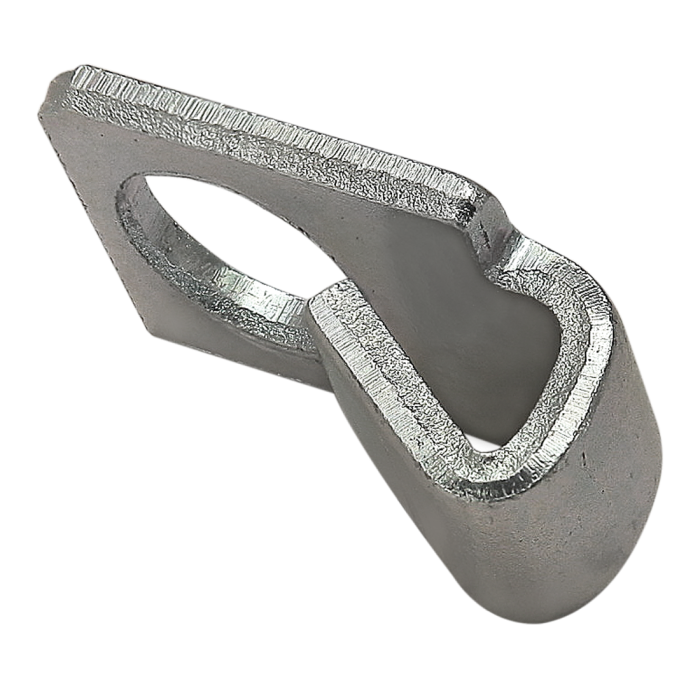

25 Series Single Tab End Fastener Clip
25 Series Single Tab End Fastener Clip
The single tab wing clip is commonly used with a button head socket cap screw (PN 13-6316) to create custom end fastener assemblies. The winged tab of the clip prevents the mating profile from rotating. An end fastener connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.
The single tab wing clip is commonly used with a button head socket cap screw (PN 13-6316) to create custom end fastener assemblies. The winged tab of the clip prevents the mating profile from rotating. An end fastener connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.
| ESD Safe | Yes |
| Series | 25 Series |
| Type | Clip |
| Material | Steel |
| Color | Bright |
| A | 10.94mm |
| B | 7.44mm |
| C | 6.09mm |
| D | 6.98mm |
| E | 16.38mm |
| F | 12.42mm |
| G | n/a |
| H | n/a |
| Weight | 0.006000 |
The single tab wing clip is commonly used with a button head socket cap screw (PN 13-6316) to create custom end fastener assemblies. The winged tab of the clip prevents the mating profile from rotating. An end fastener connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.
Product Specs
- Product Details
-
ESD Safe Yes Series 25 Series Type Clip Material Steel Color Bright A 10.94mm B 7.44mm C 6.09mm D 6.98mm E 16.38mm F 12.42mm G n/a H n/a Weight 0.006000
-
- Description
The single tab wing clip is commonly used with a button head socket cap screw (PN 13-6316) to create custom end fastener assemblies. The winged tab of the clip prevents the mating profile from rotating. An end fastener connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.
-
