()25-2527-Black-FB

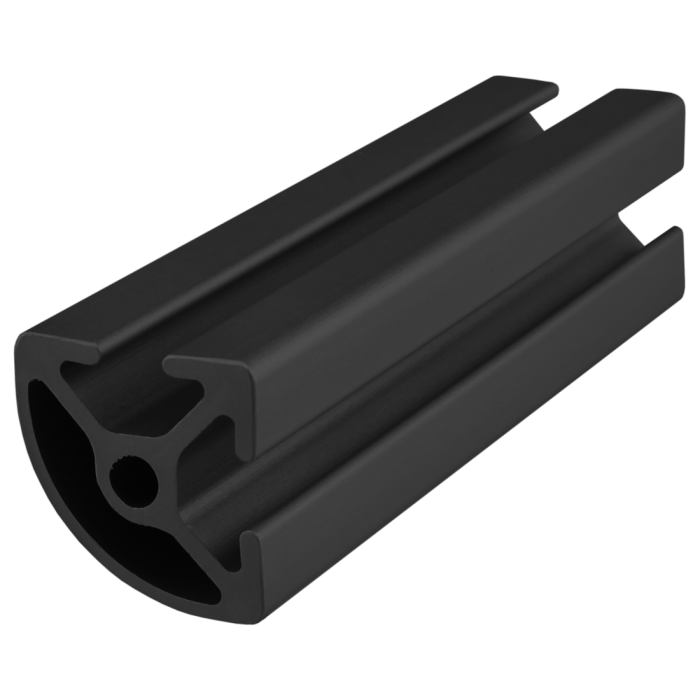

25mm X 25mm Quarter Round T-Slotted Profile - Two Open T-Slots
25mm X 25mm Quarter Round T-Slotted Profile - Two Open T-Slots
25-2527-Black-FB is a 25mm x 25mm metric 25 series quarter round T-slot profile with an 18.75mm radius curved back and two open T-slots, one on each of the 25mm profile faces. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 25-2527-Black-FB profile is compatible with 25 series fasteners. This profile lends itself to workstations and displays because panels or other support structures can be easily placed in the T-slots allowing a continuous surface and aesthetic appearance.
Price Per Millimeter
$0.030525-2527-Black-FB is a 25mm x 25mm metric 25 series quarter round T-slot profile with an 18.75mm radius curved back and two open T-slots, one on each of the 25mm profile faces. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 25-2527-Black-FB profile is compatible with 25 series fasteners. This profile lends itself to workstations and displays because panels or other support structures can be easily placed in the T-slots allowing a continuous surface and aesthetic appearance.
-
End Taps
-
Counterbores
-
Access Holes
-
Mitercuts
No Applied Machining
- Single Hole End Tap
1/4-20 D x 28.58mm ↧
Price: $2.79 - Single Hole End Tap
M6 x 1.00 D x 28.58mm ↧
Price: $2.79
- .219" D accesshole
25-7051 | Price: $2.79
- 0° to 75° Mitercut
Price: $4.93
See here for details
In stock
Total Price
................................................................................................................................Max Length (inches) | 238.188976 |
Series | 25 Series |
Material | Aluminum |
Grade | 6005A – T61 |
Finish | Anodize |
Color | Black |
Drop Lock | 2° |
Moment of Inertia - IX | 1.4578 cm⁴ |
Moment of Inertia - IY | 1.4578 cm⁴ |
Surface Area | 2.428 Sq cm |
Yield Strength | 241.1 N/ Sq. mm |
Modulus of Elasticity | 70,326.5 N/Sq. mm |
Weight lbs | 0.0367 per inch |
Weight | 0.036700 |
25-2527-Black-FB is a 25mm x 25mm metric 25 series quarter round T-slot profile with an 18.75mm radius curved back and two open T-slots, one on each of the 25mm profile faces. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 25-2527-Black-FB profile is compatible with 25 series fasteners. This profile lends itself to workstations and displays because panels or other support structures can be easily placed in the T-slots allowing a continuous surface and aesthetic appearance.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
Max Length (inches) 238.188976 Series 25 Series Material Aluminum Grade 6005A – T61 Finish Anodize Color Black Drop Lock 2° Moment of Inertia - IX 1.4578 cm^4 Moment of Inertia - IY 1.4578 cm^4 Surface Area 2.428 Sq cm Yield Strength 241.1 N/ Sq. mm Modulus of Elasticity 70,326.5 N/Sq. mm Weight lbs 0.0367 per inch Weight 0.036700
-
- Description
25-2527-Black-FB is a 25mm x 25mm metric 25 series quarter round T-slot profile with an 18.75mm radius curved back and two open T-slots, one on each of the 25mm profile faces. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 25-2527-Black-FB profile is compatible with 25 series fasteners. This profile lends itself to workstations and displays because panels or other support structures can be easily placed in the T-slots allowing a continuous surface and aesthetic appearance.
