25-2154

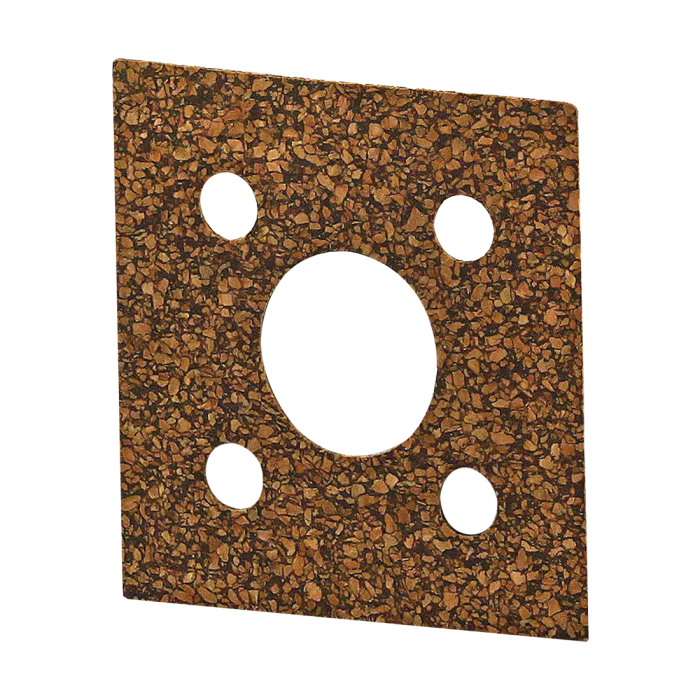

25 Series 5-Hole Square Gasket for Pressure Manifold
25 Series 5-Hole Square Gasket for Pressure Manifold
The 5-hole square gasket for pressure manifold is made of a cork and synthetic rubber combination used to prevent leakage. It is commonly used with manifold plates to completely seal a profile end or create a tight seal where a substance is released.
| ESD Safe | No |
| Series | 25 Series |
| Material | CR-20 |
| Color | Brown |
| A | 25.00mm |
| B | 12.50mm |
| C | 50.00mm |
| D | 12.50mm |
| E | 25.00mm |
| F | 12.50mm |
| G | 6.00mm |
| H | .076mm |
| J | 50.00mm |
| Weight | 0.003000 |
The 5-hole square gasket for pressure manifold is made of a cork and synthetic rubber combination used to prevent leakage. It is commonly used with manifold plates to completely seal a profile end or create a tight seal where a substance is released.
Product Specs
- Product Details
-
ESD Safe No Series 25 Series Material CR-20 Color Brown A 25.00mm B 12.50mm C 50.00mm D 12.50mm E 25.00mm F 12.50mm G 6.00mm H .076mm J 50.00mm Weight 0.003000
-
- Description
The 5-hole square gasket for pressure manifold is made of a cork and synthetic rubber combination used to prevent leakage. It is commonly used with manifold plates to completely seal a profile end or create a tight seal where a substance is released.
-
