25-2081
25 Series 4 Hole - Adjustable Tension Panel Hinge
25 Series 4 Hole - Adjustable Tension Panel Hinge

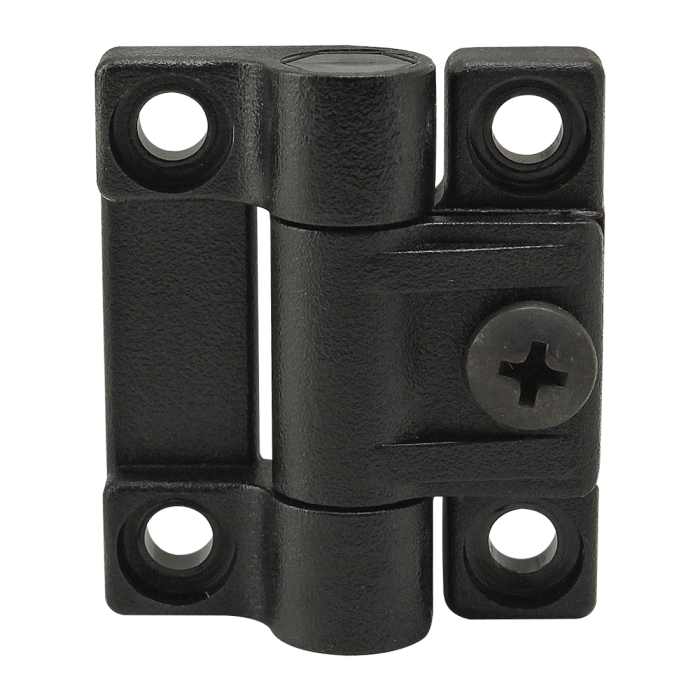

The 4 hole - adjustable tension panel hinge is comprised of black acetal with clear polycarbonate hinge pins. It is a durable and economical option and the adjustable pins have the ability to change the pivot tension when opening or closing an access point. The 4 hole - adjustable tension panel hinge mounts plastic panels and lightweight doors to T-slots. Important: This hinge is not suitable for connecting multiple T-slot profiles.
The 4 hole - adjustable tension panel hinge is comprised of black acetal with clear polycarbonate hinge pins. It is a durable and economical option and the adjustable pins have the ability to change the pivot tension when opening or closing an access point. The 4 hole - adjustable tension panel hinge mounts plastic panels and lightweight doors to T-slots. Important: This hinge is not suitable for connecting multiple T-slot profiles.
| ESD Safe | No |
| Series | 25 Series |
| Material | Engineered Polymer |
| Finish | Matte |
| Color | Black |
| Process | Injection Molded |
| A | 25.40mm |
| B | 42.86mm |
| C | 31.75mm |
| D | 18.26mm |
| E | 12.70mm |
| F | 5.00mm |
| G | 6.76mm |
| H | 5.94mm |
| J | 5.84mm |
| Weight | 0.032000 |
The 4 hole - adjustable tension panel hinge is comprised of black acetal with clear polycarbonate hinge pins. It is a durable and economical option and the adjustable pins have the ability to change the pivot tension when opening or closing an access point. The 4 hole - adjustable tension panel hinge mounts plastic panels and lightweight doors to T-slots. Important: This hinge is not suitable for connecting multiple T-slot profiles.
Per Leaf Mount to T-slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 75-3401 | 2 | Bolt Assembly: M5 x 10.00mm Blue SHCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc |
Per Leaf Mount to Panel LTE .250" / 6mm
| Series | Part Number | Qty | Description |
|---|---|---|---|
| 75-3400 | 2 | Bolt Assembly: M5 x 16.00mm Blue SHCS with Washer and Hex Nut- Blue Zinc |
Product Specs
- Product Details
-
ESD Safe No Series 25 Series Material Engineered Polymer Finish Matte Color Black Process Injection Molded A 25.40mm B 42.86mm C 31.75mm D 18.26mm E 12.70mm F 5.00mm G 6.76mm H 5.94mm J 5.84mm Weight 0.032000
-
- Description
The 4 hole - adjustable tension panel hinge is comprised of black acetal with clear polycarbonate hinge pins. It is a durable and economical option and the adjustable pins have the ability to change the pivot tension when opening or closing an access point. The 4 hole - adjustable tension panel hinge mounts plastic panels and lightweight doors to T-slots. Important: This hinge is not suitable for connecting multiple T-slot profiles.
-
Sugg. Hardware
Per Leaf Mount to T-slot
Series Part Number Qty Description 75-3401 2 Bolt Assembly: M5 x 10.00mm Blue SHCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc Per Leaf Mount to Panel LTE .250" / 6mm
Series Part Number Qty Description 75-3400 2 Bolt Assembly: M5 x 16.00mm Blue SHCS with Washer and Hex Nut- Blue Zinc
-
