2442

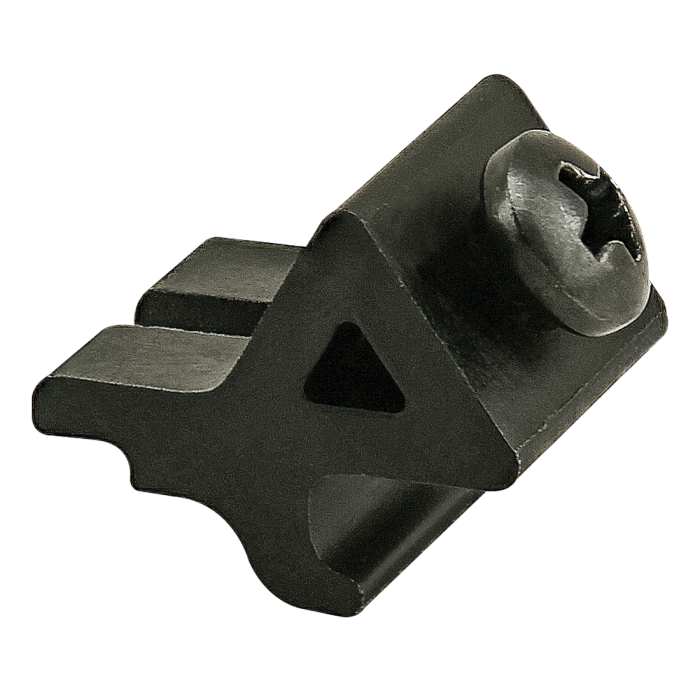

Roll-in Mesh Panel Retainer
Roll-in Mesh Panel Retainer
The roll-in mesh panel retainer is used to mount a mesh panel when it is recessed within the T-slot. It rolls into the T-slot channel and can be used when the profile ends are closed, making assembly fast and easy. The self-threading screw is included and no machining services are required. Important: This retainer is not intended for use with expanded metal panels.
The roll-in mesh panel retainer is used to mount a mesh panel when it is recessed within the T-slot. It rolls into the T-slot channel and can be used when the profile ends are closed, making assembly fast and easy. The self-threading screw is included and no machining services are required. Important: This retainer is not intended for use with expanded metal panels.
| ESD Safe | No |
| Series | 15 Series, 40 Series |
| Material | Nylon PA Glass Fiber Reinforced |
| Process | Molded |
| Color | Black |
| A | .625" |
| B | .150" |
| C | .758" |
| D | .400" |
| E | No. 2 Phillips |
| Weight | 0.006000 |
The roll-in mesh panel retainer is used to mount a mesh panel when it is recessed within the T-slot. It rolls into the T-slot channel and can be used when the profile ends are closed, making assembly fast and easy. The self-threading screw is included and no machining services are required. Important: This retainer is not intended for use with expanded metal panels.
Product Specs
- Product Details
-
ESD Safe No Series 15 Series, 40 Series Material Nylon PA Glass Fiber Reinforced Process Molded Color Black A .625" B .150" C .758" D .400" E No. 2 Phillips Weight 0.006000
-
- Description
The roll-in mesh panel retainer is used to mount a mesh panel when it is recessed within the T-slot. It rolls into the T-slot channel and can be used when the profile ends are closed, making assembly fast and easy. The self-threading screw is included and no machining services are required. Important: This retainer is not intended for use with expanded metal panels.
-
