24301

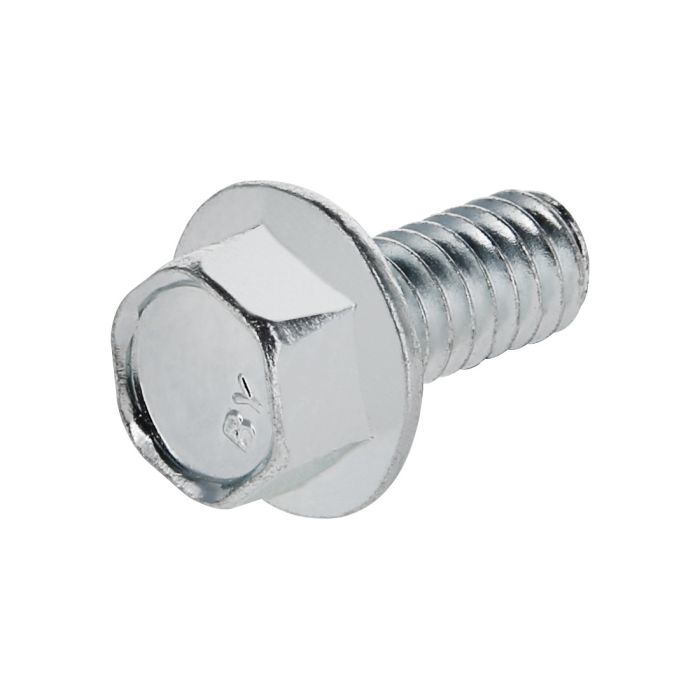

1/4-20 X 0.500" Flanged Hex Head Bolt
1/4-20 X 0.500" Flanged Hex Head Bolt
| ESD Safe | Yes |
| Series | 15 Series |
| Material | Steel |
| Finish | Zinc |
| Color | Silver |
| A | 0.560" |
| B | 3/8 |
| C | 0.281" |
| D (Length) | .500" |
| E (Thread) | 1/4-20 |
| Thread Length | Full Thread |
| Weight | 0.012000 |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe Yes Series 15 Series Material Steel Finish Zinc Color Silver A 0.560" B 3/8 C 0.281" D (Length) .500" E (Thread) 1/4-20 Thread Length Full Thread Weight 0.012000
-
-
CAD Files
-
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
-
