2413-Black

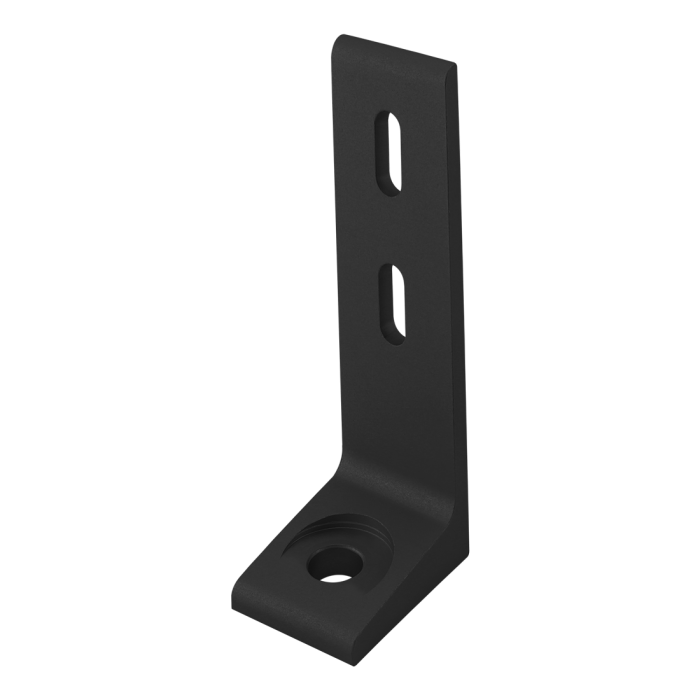

15 Series & Ready Tube™ 1.5" Slotted Economy Floor Mount Base Plate
15 Series & Ready Tube™ 1.5" Slotted Economy Floor Mount Base Plate
The slotted economy floor mount base plate is available in clear or black anodized aluminum to withstand daily use and wear and tear. It has slotted holes to assist with positioning and adjustments, making it a common choice for use with Ready Tube. The base plate is designed with a countersunk hole to incorporate floor anchors.
The slotted economy floor mount base plate is available in clear or black anodized aluminum to withstand daily use and wear and tear. It has slotted holes to assist with positioning and adjustments, making it a common choice for use with Ready Tube. The base plate is designed with a countersunk hole to incorporate floor anchors.
| ESD Safe | Yes |
| Series | 15 Series, Ready Tube |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Black |
| Process | Milled |
| A | 2.750" |
| B | 1.250" |
| C | 1.500" |
| D | .750" |
| E | .500" |
| F | .328" |
| G | 1.312" |
| H | .750" |
| J | .530" |
| K | .312" |
| L | 1.125" |
| M | .250" |
| N | 5.000" |
| P | 2.000" |
| Weight | 0.255000 |
The slotted economy floor mount base plate is available in clear or black anodized aluminum to withstand daily use and wear and tear. It has slotted holes to assist with positioning and adjustments, making it a common choice for use with Ready Tube. The base plate is designed with a countersunk hole to incorporate floor anchors.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3320 | 2 | Bolt Assembly: 5/16-18 x .687" Black FBHSCS with Slide-In Economy T-Nut - Offset Thread - Black Zinc |
 | 3960 | 2 | Bolt Assembly: 5/16-18 x 2.000" Bright Flanged Hex Head Bolt and Flanged Hex Nut - Bright Zinc |
Product Specs
- Product Details
-
ESD Safe Yes Series 15 Series, Ready Tube Material Aluminum Grade 6063-T6 Finish Anodize Color Black Process Milled A 2.750" B 1.250" C 1.500" D .750" E .500" F .328" G 1.312" H .750" J .530" K .312" L 1.125" M .250" N 5.000" P 2.000" Weight 0.255000
-
- Description
The slotted economy floor mount base plate is available in clear or black anodized aluminum to withstand daily use and wear and tear. It has slotted holes to assist with positioning and adjustments, making it a common choice for use with Ready Tube. The base plate is designed with a countersunk hole to incorporate floor anchors.
- Sugg. Hardware
-
