2400-Black

Product Specs

• Product Details
  •

    ESD Safe	Yes
    Series	15 Series
    Material	Aluminum
    Grade	6063-T6
    Process	Milled
    Finish	Anodize
    Color	Black
    A	4.750"
    B	.625"
    C	6.500"
    D	5.250"
    E	3.250"
    F	1.520"
    G	.265"
    H	.250"
    J	1.000"
    K	.750"
    L	1.500"
    M	2.750"
    N	.375"
    P	6.000"
    Q	.328"
    R	3.000"
    S	.750"
    T	1.500"
    Weight	2.489000

• Description

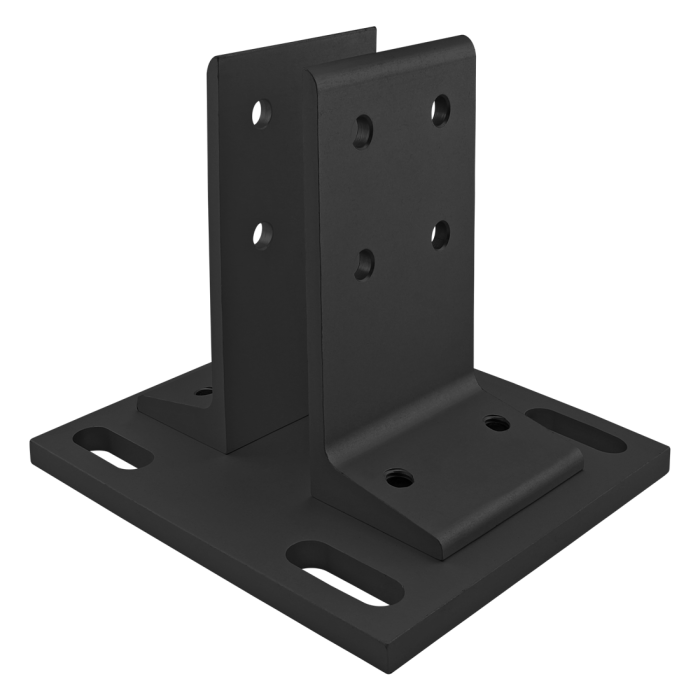

  • The floor mount base plate is made of anodized aluminum to withstand daily use and wear and tear. It has two upright plates that support the sides of the profile and enable vertical adjustments. The mount also has anchoring slots to bolt the frame to the floor; the slots allow lateral adjustments.
• Sugg. Hardware

  • Mount to T-Slot

    Series	Part Number	Qty	Description
    	3325	4 To 8	Bolt Assembly: 5/16-18 x .750" Black Slide-In Flanged Economy T-Slot Stud with Washer and Hex Nut - Black Zinc
    	3320	4 To 8	Bolt Assembly: 5/16-18 x .687" Black FBHSCS with Slide-In Economy T-Nut - Offset Thread - Black Zinc
