Product Specs

• Product Details
  •

    Series	15 Series, 30 Series, 40 Series, 45 Series
    Material	Aluminum & Steel
    Color	Gray
    Weight	33.000000

• Description

  • • Includes 3 programmable height settings, and a digital readout of current height

    • Max load: 600 kg (1320lbs) – includes weight of frame

    • Max stroke: 300mm (11.811”)

    • Lifting speed: 9mm per second (.354”/sec)

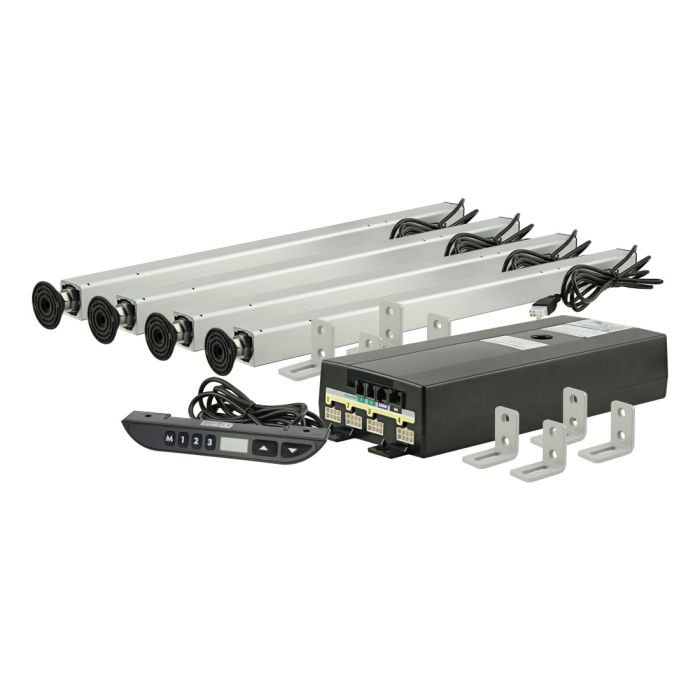

    • Included in kit: control box (1), memory control switch (1), linear leg units with 6.5’ cables (4), 9.5’ power cable (1), rubber leveling feet (4), mounting brackets (8), M5 x 8mm bolts (16)

    • Kit ships in one box weighing 33 lbs and measuring 30” x 10” x 7” in size

• Downloads

  • Instructions

    Download Instructions

    Download FREE

    Drawing Files & Bill of Materials!

    AutoCAD^® IGES^® SolidWorks^® Bill of Materials eDrawing^®
