Product Specs

• Product Details
  •

    ESD Safe	Yes
    Series	15 Series
    Material	Aluminum
    Grade	6063-T6
    Process	Milled
    Finish	Anodize
    Color	Clear
    A	4.000"
    B	2.250"
    C	1.500"
    D	.750"
    E	3.000"
    F	1.500"
    G	.750"
    H	5/16 SHCS
    J	1/2-13
    K	.531"
    L	1.500"
    M	.750"
    N	4.500"
    Weight	0.921000

• Description

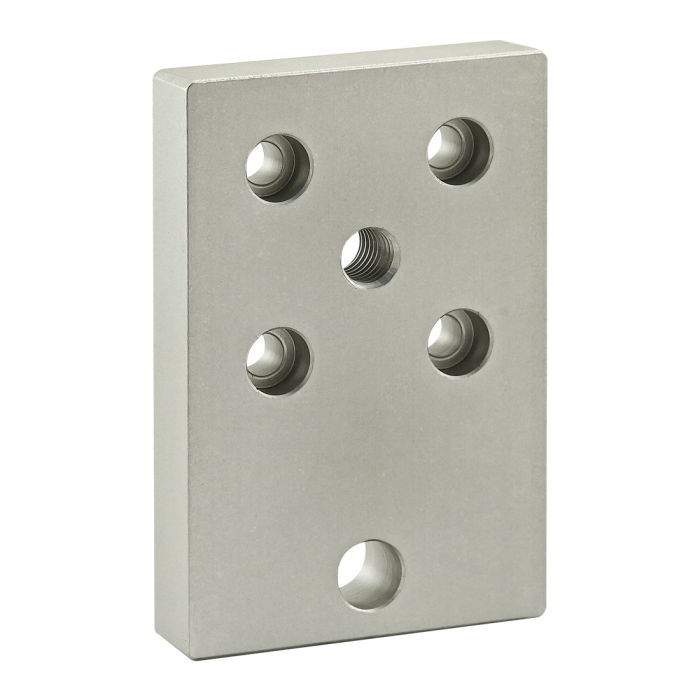

  • The 6 hole – leveling anchoring base plate is made of anodized aluminum to withstand daily use and wear and tear. It mounts to a profile end and provides an offset hole that allows a leveling foot and floor anchor to be used at the same time. A tap is required to mount to the profile end.

• Sugg. Hardware

  • Mount to T-Slot

    Series	Part Number	Qty	Description
    	3458	4	Bolt Assembly: 5/16-18 x .875" Black SHCS and Slide-In Economy T-Nut - Offset Thread - Black Zinc

    Mount to Profile End

    Series	Part Number	Qty	Description
    	3123	4	5/16-18 x 1.300" Socket Head Cap Screw (SHCS)
