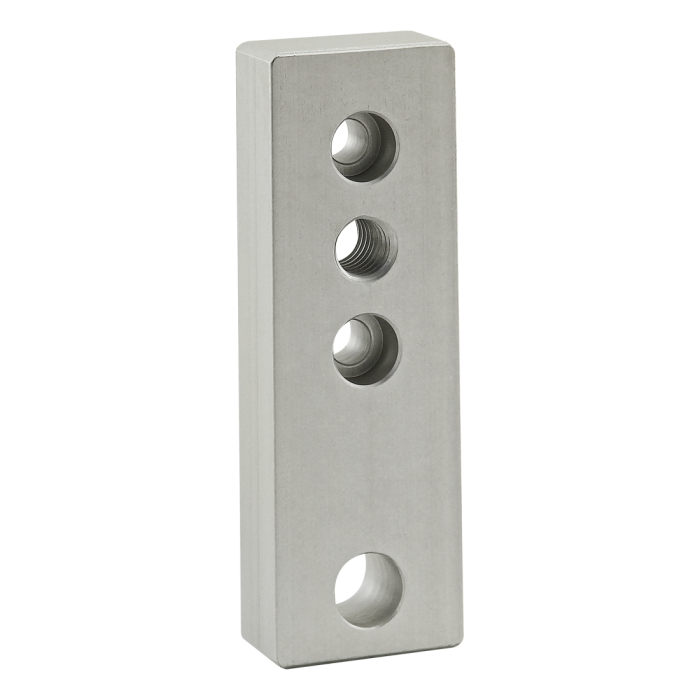

15 Series 4 Hole - Leveling Anchoring Base Plate: 1/2-13 Tap
15 Series 4 Hole - Leveling Anchoring Base Plate: 1/2-13 Tap
The 4 hole – leveling anchoring base plate is made of anodized aluminum to withstand daily use and wear and tear. It mounts to a profile end and provides an offset hole that allows a leveling foot and floor anchor to be used at the same time. The mounting hardware helps align the base plate within the T-slot to keep the profile from rotating. A tap is required to mount to the profile end.
The 4 hole – leveling anchoring base plate is made of anodized aluminum to withstand daily use and wear and tear. It mounts to a profile end and provides an offset hole that allows a leveling foot and floor anchor to be used at the same time. The mounting hardware helps align the base plate within the T-slot to keep the profile from rotating. A tap is required to mount to the profile end.
Total Price
................................................................................................................................| Series | 15 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Process | Milled |
| Finish | Anodize |
| Color | Clear |
| A | 4.000" |
| B | 2.250" |
| C | 1.500" |
| D | .750" |
| E | 1.500" |
| F | .750" |
| G | 1.500" |
| H | 1/2-13 |
| J | 5/16 SHCS |
| K | .531" |
| L | .750" |
| M | 4.500" |
| Weight | 0.441000 |
The 4 hole – leveling anchoring base plate is made of anodized aluminum to withstand daily use and wear and tear. It mounts to a profile end and provides an offset hole that allows a leveling foot and floor anchor to be used at the same time. The mounting hardware helps align the base plate within the T-slot to keep the profile from rotating. A tap is required to mount to the profile end.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3458 | 2 | Bolt Assembly: 5/16-18 x .875" Black SHCS and Slide-In Economy T-Nut - Offset Thread - Black Zinc |
Mount to Profile End
| Series | Part Number | Qty | Description |
|---|---|---|---|
| 3123 | 2 | 5/16-18 x 1.300" Socket Head Cap Screw (SHCS) |
Product Specs
- Product Details
-
Series 15 Series Material Aluminum Grade 6063-T6 Process Milled Finish Anodize Color Clear A 4.000" B 2.250" C 1.500" D .750" E 1.500" F .750" G 1.500" H 1/2-13 J 5/16 SHCS K .531" L .750" M 4.500" Weight 0.441000
-
- Description
The 4 hole – leveling anchoring base plate is made of anodized aluminum to withstand daily use and wear and tear. It mounts to a profile end and provides an offset hole that allows a leveling foot and floor anchor to be used at the same time. The mounting hardware helps align the base plate within the T-slot to keep the profile from rotating. A tap is required to mount to the profile end.
-
Sugg. Hardware
Mount to T-Slot
Series Part Number Qty Description 3458 2 Bolt Assembly: 5/16-18 x .875" Black SHCS and Slide-In Economy T-Nut - Offset Thread - Black Zinc Mount to Profile End
Series Part Number Qty Description 3123 2 5/16-18 x 1.300" Socket Head Cap Screw (SHCS)
