10 Series 5-Hole Square Pressure Manifold Feed Plate
10 Series 5-Hole Square Pressure Manifold Feed Plate

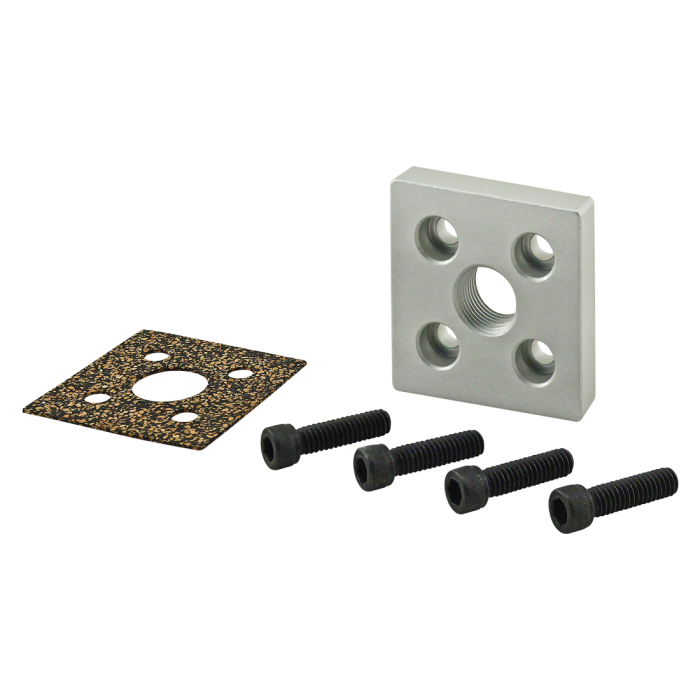

The 5-hole square pressure manifold feed plate is commonly used when adding a pressurized substance to a T-slot profile. It has a tapped hole and mounts on the profile end to seal the connection where the pressurized substance is released. The suggested mounting hardware and gasket are included. The maximum allowable pressure is 150 psi (1034.21 kPa).
The 5-hole square pressure manifold feed plate is commonly used when adding a pressurized substance to a T-slot profile. It has a tapped hole and mounts on the profile end to seal the connection where the pressurized substance is released. The suggested mounting hardware and gasket are included. The maximum allowable pressure is 150 psi (1034.21 kPa).
....................................................................................................................................................................................................................................................
Total Price
$16.80| Series | 10 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Finish | Anodize |
| Color | Clear |
| Process | Milled |
| A | 1.000" |
| B | .500" |
| C | 2.000" |
| D | 1.000" |
| E | 1.000" |
| F (Thread) | 3/8" NPT |
| G (Bolt Size) | 1/4 SHCS |
| H | .490" |
| J | 2.000" |
| Weight | 0.176000 |
The 5-hole square pressure manifold feed plate is commonly used when adding a pressurized substance to a T-slot profile. It has a tapped hole and mounts on the profile end to seal the connection where the pressurized substance is released. The suggested mounting hardware and gasket are included. The maximum allowable pressure is 150 psi (1034.21 kPa).
Mount to T-Slot
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
 | 3071 | 4 | 1/4-20 x 1.000" Socket Head Cap Screw (SHCS) |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series 10 Series Material Aluminum Grade 6105-T5 Finish Anodize Color Clear Process Milled A 1.000" B .500" C 2.000" D 1.000" E 1.000" F (Thread) 3/8" NPT G (Bolt Size) 1/4 SHCS H .490" J 2.000" Weight 0.176000
-
- Description
The 5-hole square pressure manifold feed plate is commonly used when adding a pressurized substance to a T-slot profile. It has a tapped hole and mounts on the profile end to seal the connection where the pressurized substance is released. The suggested mounting hardware and gasket are included. The maximum allowable pressure is 150 psi (1034.21 kPa).
-
Incl. Hardware
Mount to T-Slot
Series Part Number Qty Description Select Qty / Add To Cart 3071 4 1/4-20 x 1.000" Socket Head Cap Screw (SHCS)
