2144

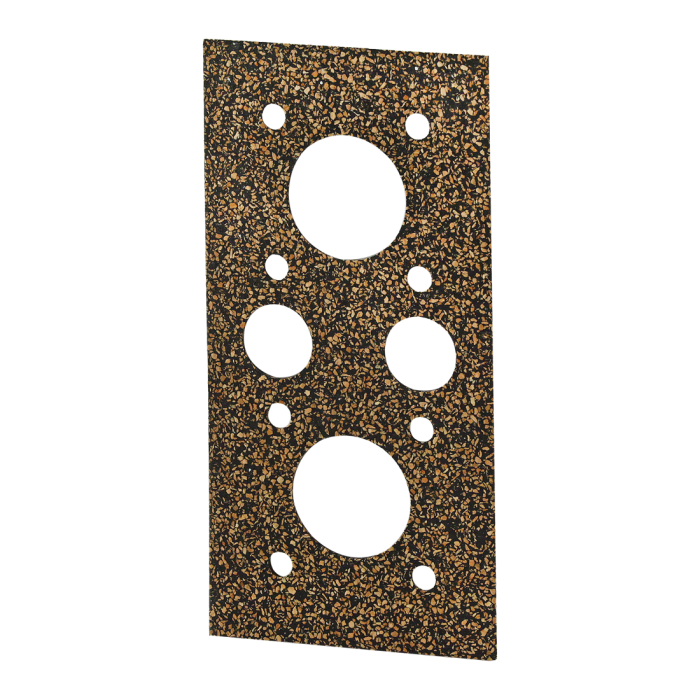

15 Series 12-Hole Gasket for Pressure Manifold
15 Series 12-Hole Gasket for Pressure Manifold
The 12-hole gasket for pressure manifold is made of a cork and synthetic rubber combination used to prevent leakage. It is commonly used with manifold plates to completely seal a profile end or create a tight seal where a substance is released.
| ESD Safe | No |
| Series | 15 Series |
| Material | Velumoid |
| Color | Brown |
| A | 1.500" |
| B | .750" |
| C | .750" |
| D | 3.000" |
| E | .750" |
| F | 1.500" |
| G | 3.000" |
| H | 1.250" |
| J | .750" |
| K | .275" |
| L | 1.500" |
| M | .030" |
| N | 6.000" |
| Weight | 0.012000 |
The 12-hole gasket for pressure manifold is made of a cork and synthetic rubber combination used to prevent leakage. It is commonly used with manifold plates to completely seal a profile end or create a tight seal where a substance is released.
Product Specs
- Product Details
-
ESD Safe No Series 15 Series Material Velumoid Color Brown A 1.500" B .750" C .750" D 3.000" E .750" F 1.500" G 3.000" H 1.250" J .750" K .275" L 1.500" M .030" N 6.000" Weight 0.012000
-
- Description
The 12-hole gasket for pressure manifold is made of a cork and synthetic rubber combination used to prevent leakage. It is commonly used with manifold plates to completely seal a profile end or create a tight seal where a substance is released.
-
