2123
10 & 15 Series Grabber™ Door Catch Mounting Plate
10 & 15 Series Grabber™ Door Catch Mounting Plate

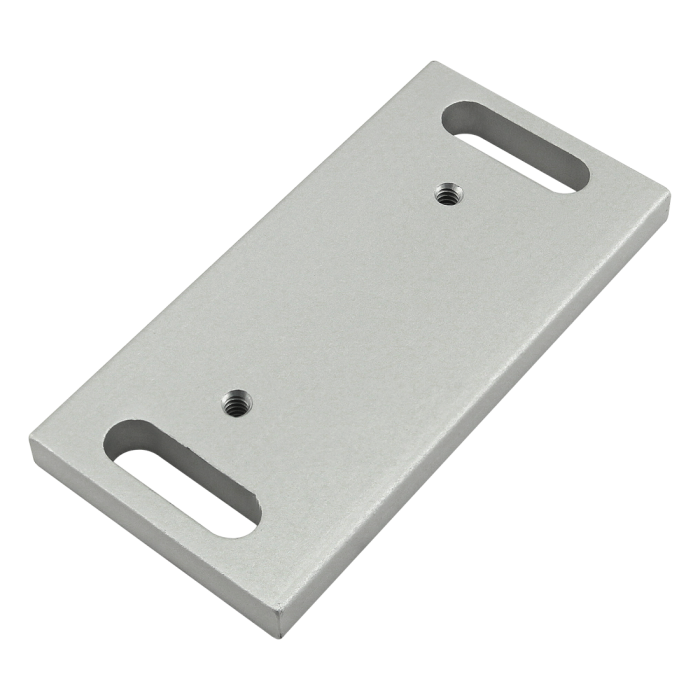

The Grabber™ door catch mounting plate is made of .250" 6063-T6 anodized aluminum and is used to mount the Grabber™ door catch to a T-slot or plastic panel.
| ESD Safe | No |
| Series | 10 Series, 15 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Clear |
| Process | Milled |
| A | .625" |
| B | .705" |
| C | 1.590" |
| D | .257" |
| E | .395" |
| F | .605" |
| G | #6-32 |
| H | 2.500" |
| J | .250" |
| K | 1.490" |
| Weight | 0.097000 |
The Grabber™ door catch mounting plate is made of .250" 6063-T6 anodized aluminum and is used to mount the Grabber™ door catch to a T-slot or plastic panel.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3321 | 2 | Bolt Assembly: 1/4-20 x .500" Black FBHSCS and Slide-In Economy T-Nut - Centered Thread - Black Zinc |
 | 3371 | 2 | Bolt Assembly: 1/4-20 x .750" Black BHSCS with Washer and Slide-In Economy T-Nut - Centered Thread - Black Zinc |
