2079
10 & 15 Series Offset Plastic Handle
10 & 15 Series Offset Plastic Handle

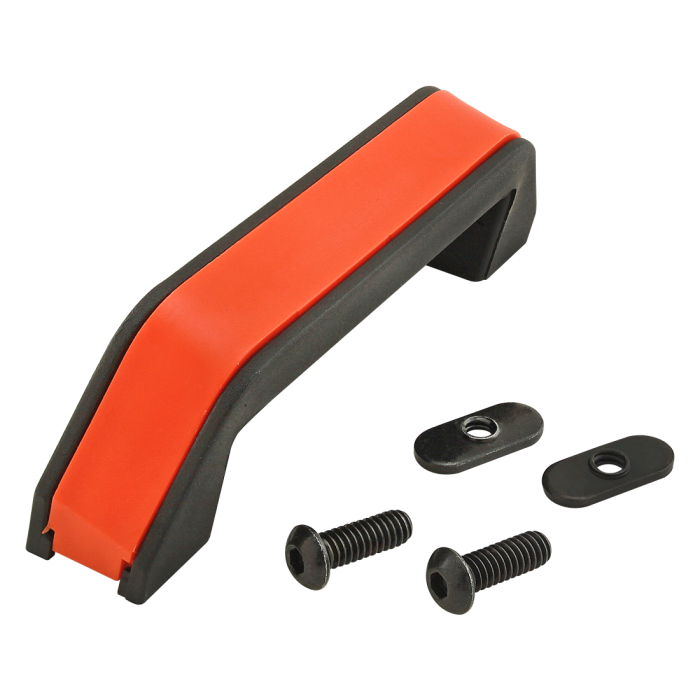

The offset plastic handle is made of fiberglass-reinforced nylon that is corrosion-resistant making it useful for both indoor and outdoor applications. It bolts directly to the T-slot profile and is ideal for bi-fold doors. One side is completely solid to prevent finger-pinching and there is an orange snap-on cover included to hide the mounting screws and provide a clean look. All mounting hardware is included.
The offset plastic handle is made of fiberglass-reinforced nylon that is corrosion-resistant making it useful for both indoor and outdoor applications. It bolts directly to the T-slot profile and is ideal for bi-fold doors. One side is completely solid to prevent finger-pinching and there is an orange snap-on cover included to hide the mounting screws and provide a clean look. All mounting hardware is included.
| ESD Safe | No |
| Series | 10 Series, 15 Series |
| Material | Fiberglass-Reinforced Nylon |
| Finish | Matte |
| Process | Molded |
| Body Color | Black |
| Cover Color | Orange |
| A | 5.078" |
| B | 3.543" |
| C | .217" |
| D | 4.291" |
| E | .482" |
| F | .964" |
| G | .236" |
| H | 1.767" |
| J | 15° |
| Weight | 0.196000 |
The offset plastic handle is made of fiberglass-reinforced nylon that is corrosion-resistant making it useful for both indoor and outdoor applications. It bolts directly to the T-slot profile and is ideal for bi-fold doors. One side is completely solid to prevent finger-pinching and there is an orange snap-on cover included to hide the mounting screws and provide a clean look. All mounting hardware is included.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 75-3802 | 2 | Bolt Assembly: 1/4-20 x .625" Black BHSCS with Slide-In Economy T-Nut - Centered Thread - Black Zinc |
 | 75-3804 | 2 | Bolt Assembly: 1/4-20 x .750" Black BHSCS with Slide-In Economy T-Nut - Centered Thread - Black Zinc |
Product Specs
- Product Details
-
ESD Safe No Series 10 Series, 15 Series Material Fiberglass-Reinforced Nylon Finish Matte Process Molded Body Color Black Cover Color Orange A 5.078" B 3.543" C .217" D 4.291" E .482" F .964" G .236" H 1.767" J 15° Weight 0.196000
-
- Description
The offset plastic handle is made of fiberglass-reinforced nylon that is corrosion-resistant making it useful for both indoor and outdoor applications. It bolts directly to the T-slot profile and is ideal for bi-fold doors. One side is completely solid to prevent finger-pinching and there is an orange snap-on cover included to hide the mounting screws and provide a clean look. All mounting hardware is included.
- Incl. Hardware
-
