2070

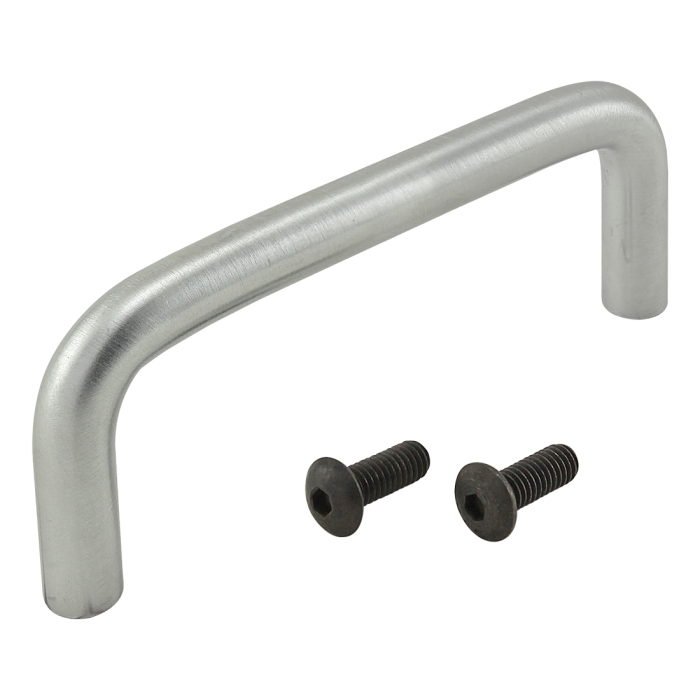

Steel Door Handle
Steel Door Handle
The steel door handle is compact and ideal for smaller areas. It is designed to bolt directly to plastic panels. The steel door handle requires a drill-through service for mounting to plastic panels. All of the required mounting hardware is included.
....................................................................................................................................................................................................................................................
Total Price
$4.45| Series | Fractional, Metric |
| Material | Steel |
| Grade | Carbon |
| Finish | 26D Brushed |
| Color | Chrome |
| Process | Formed |
| A | 1.230" |
| B | 3.300" |
| C | 2.680" |
| D | .310" |
| E | 8-32 x .500 |
| Weight | 0.104000 |
The steel door handle is compact and ideal for smaller areas. It is designed to bolt directly to plastic panels. The steel door handle requires a drill-through service for mounting to plastic panels. All of the required mounting hardware is included.
Mount to Panel
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
  | 3024 | 2 | 8-32 x .500" Button Head Socket Cap Screw (BHSCS) |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series Fractional, Metric Material Steel Grade Carbon Finish 26D Brushed Color Chrome Process Formed A 1.230" B 3.300" C 2.680" D .310" E 8-32 x .500 Weight 0.104000
-
- Description
The steel door handle is compact and ideal for smaller areas. It is designed to bolt directly to plastic panels. The steel door handle requires a drill-through service for mounting to plastic panels. All of the required mounting hardware is included.
-
Incl. Hardware
Mount to Panel
Series Part Number Qty Description Select Qty / Add To Cart 3024 2 8-32 x .500" Button Head Socket Cap Screw (BHSCS)
