2056

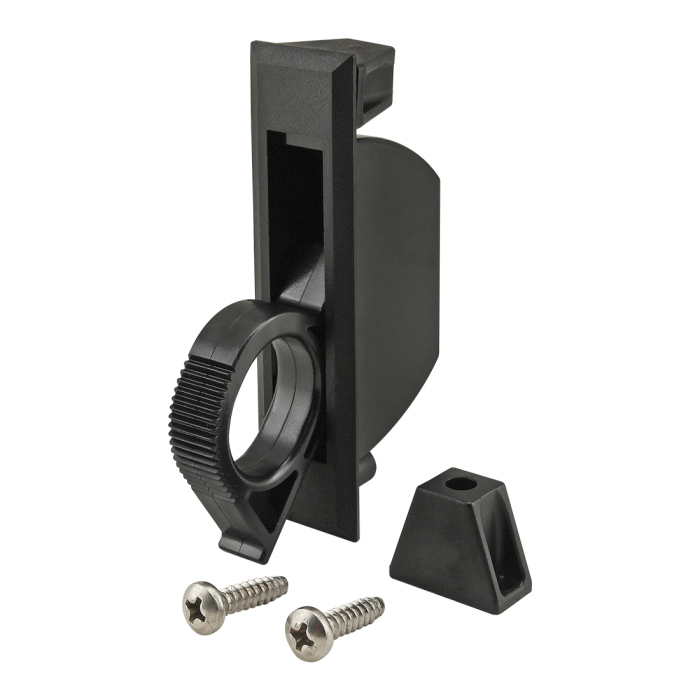

Flush Plastic Panel Handle
The flush plastic panel handle consists of a housing unit and a pull that together create a flush handle that doesn’t protrude, convenient for high-traffic areas. It provides an aesthetic appearance and mounts in panels .375" (10mm) or thinner and the mounting hardware is included. A flush handle panel milling service is required.
| ESD Safe | No |
| Series | Fractional, Metric |
| Material | Plastic |
| Grade | LNP™ Stat-Kon™ |
| Finish | Matte |
| Color | N/A |
| A | 3.180" |
| B | .750" |
| C | 1.094" |
| D | .560" |
| E | .094" |
| F | .409" |
| G | .673" |
| H | .811" |
| J | 30° |
| Weight | 0.057000 |
The flush plastic panel handle consists of a housing unit and a pull that together create a flush handle that doesn’t protrude, convenient for high-traffic areas. It provides an aesthetic appearance and mounts in panels .375" (10mm) or thinner and the mounting hardware is included. A flush handle panel milling service is required.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe No Series Fractional, Metric Material Plastic Grade LNP™ Stat-Kon™ Finish Matte Color N/A A 3.180" B .750" C 1.094" D .560" E .094" F .409" G .673" H .811" J 30° Weight 0.057000
-
- Description
- The flush plastic panel handle consists of a housing unit and a pull that together create a flush handle that doesn’t protrude, convenient for high-traffic areas. It provides an aesthetic appearance and mounts in panels .375" (10mm) or thinner and the mounting hardware is included. A flush handle panel milling service is required.
-
