20-3681

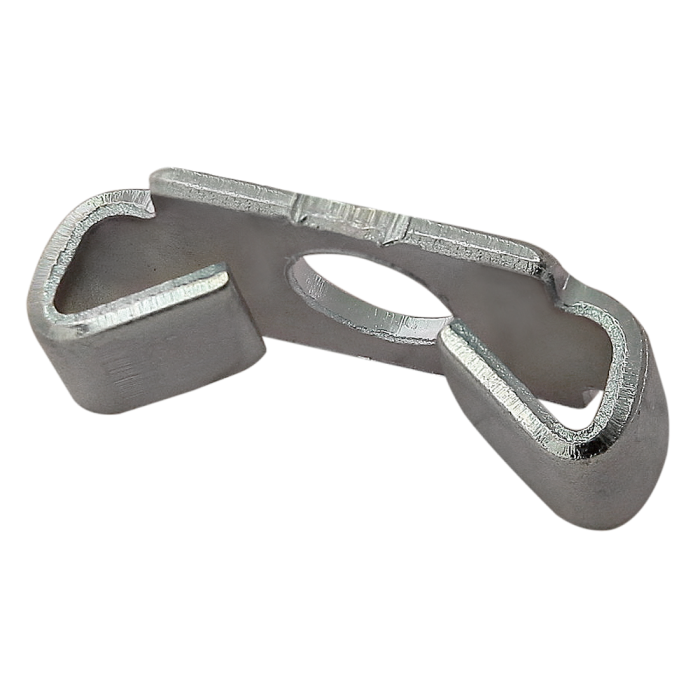

20 Series Standard End Fastener Clip
20 Series Standard End Fastener Clip
The wing clip is commonly used with a button head socket cap screw (PN 11-5312) to create custom end fastener assemblies. The winged tabs of the clip prevent the mating profile from rotating. An end fastener connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.
The wing clip is commonly used with a button head socket cap screw (PN 11-5312) to create custom end fastener assemblies. The winged tabs of the clip prevent the mating profile from rotating. An end fastener connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.
| ESD Safe | Yes |
| Series | 20 Series |
| Type | Clip |
| Material | Steel |
| Color | Bright |
| A | 10.00mm |
| B | 4.40mm |
| C | 4.80mm |
| D | 5.50mm |
| E | 19.00mm |
| F | 16.50mm |
| G | n/a |
| H | n/a |
| Weight | 0.004000 |
The wing clip is commonly used with a button head socket cap screw (PN 11-5312) to create custom end fastener assemblies. The winged tabs of the clip prevent the mating profile from rotating. An end fastener connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.
Product Specs
- Product Details
-
ESD Safe Yes Series 20 Series Type Clip Material Steel Color Bright A 10.00mm B 4.40mm C 4.80mm D 5.50mm E 19.00mm F 16.50mm G n/a H n/a Weight 0.004000
-
- Description
The wing clip is commonly used with a button head socket cap screw (PN 11-5312) to create custom end fastener assemblies. The winged tabs of the clip prevent the mating profile from rotating. An end fastener connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.
-
