Product Specs

• Product Details
  •

    Series	Metric
    Material	Steel
    Finish	Zinc
    Color	Bright
    Type	Standard Flat
    Mfg Standard	ISO 7089

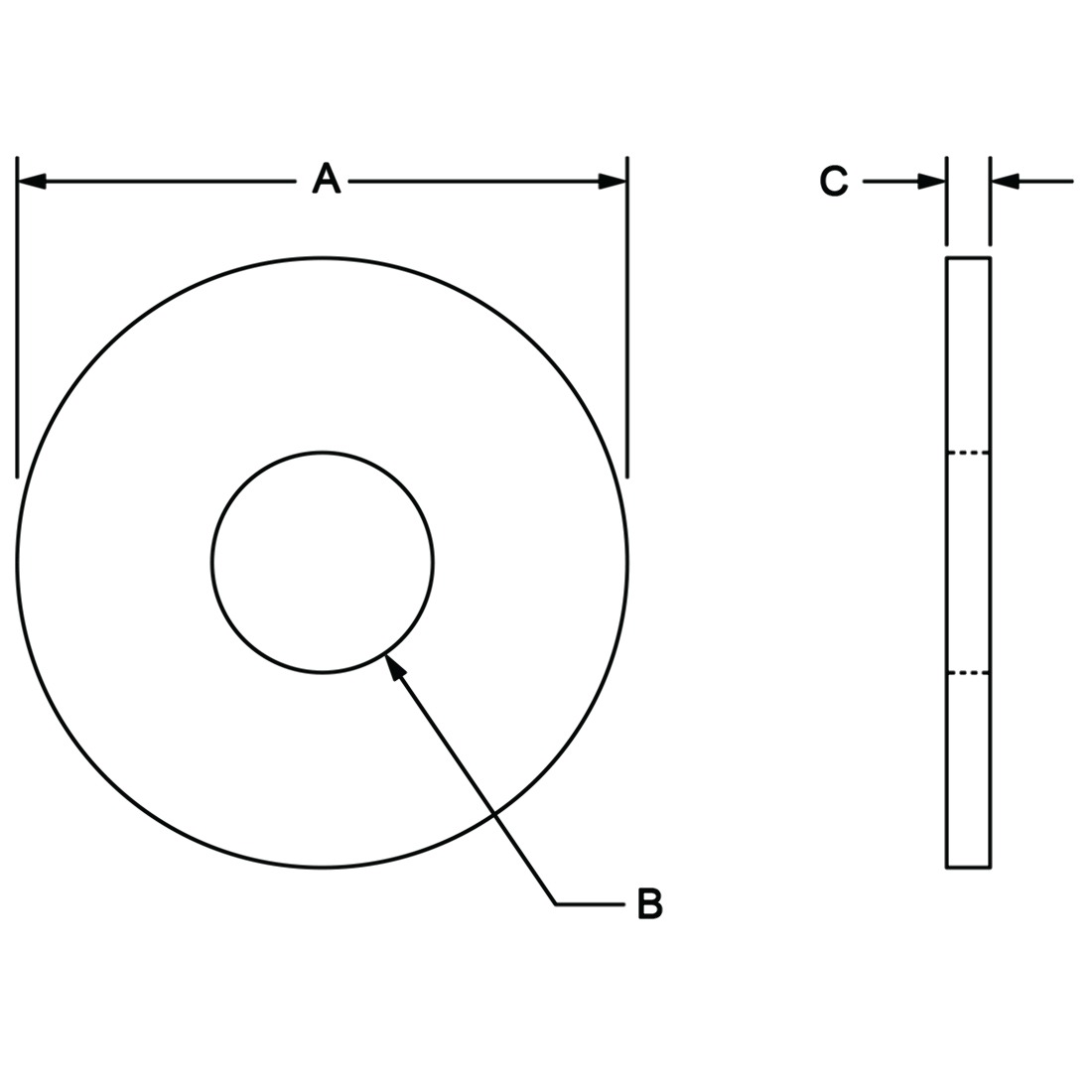

    A	15.78mm
    B	8.51mm
    C	1.60mm
    Weight	0.004000
