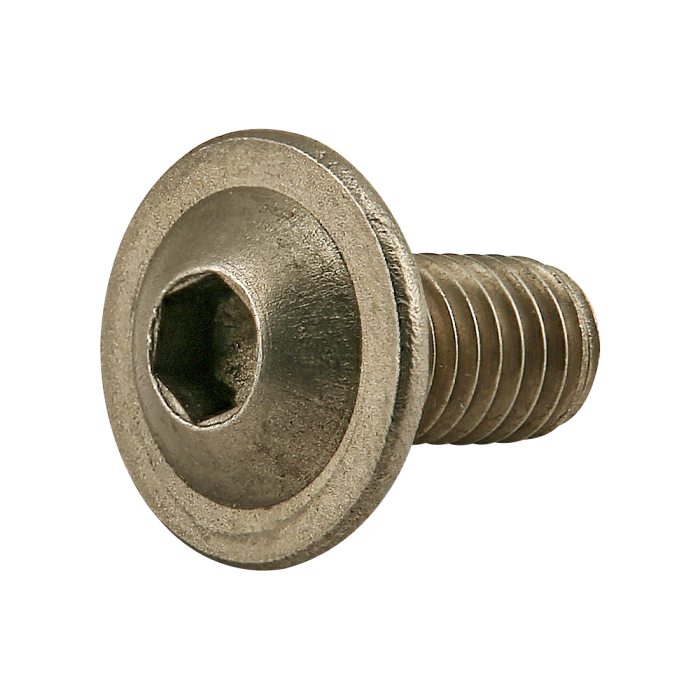

17-6412

Product Specs

• Product Details
  •

    Series	Metric
    Material	Stainless-Steel
    Finish	Stainless
    Color	N/A
    A	13.25mm
    B	4.06mm
    C	3.15mm
    D (Length)	12.00mm
    E	1.10mm
    F (Thread)	M6 X 1.0
    Thread Length	Full Thread
    Weight	0.008000
