()1515-S-Black-FB

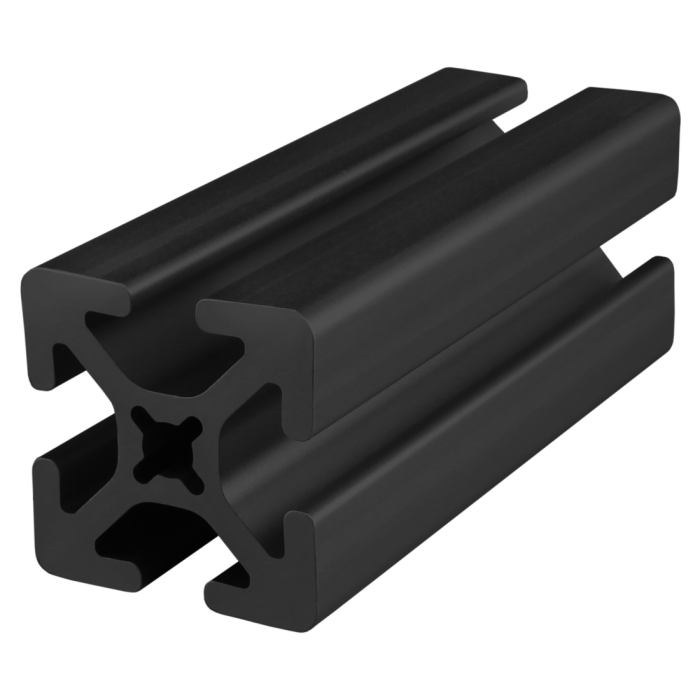

1.50” X 1.50” Smooth Surface T-Slotted Profile - Four Open T-Slots
1.50” X 1.50” Smooth Surface T-Slotted Profile - Four Open T-Slots
1515-S-Black-FB is a 1.50” x 1.50” fractional 15 series square T-slot profile with four open T-slots, one on each 1.50” face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 1515-S-Black-FB profile is compatible with all 15 series fasteners. This profile is the most heavy-duty in the 1515 profile family and lends itself to clean room applications, guards, enclosures, or workstations.
Price Per Inch
$1.38These similar products have a shorter lead time:
1515-S-Black-FB is a 1.50” x 1.50” fractional 15 series square T-slot profile with four open T-slots, one on each 1.50” face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 1515-S-Black-FB profile is compatible with all 15 series fasteners. This profile is the most heavy-duty in the 1515 profile family and lends itself to clean room applications, guards, enclosures, or workstations.
-
End Taps
-
Counterbores
-
Access Holes
-
Mitercuts
No Applied Machining
- Single Hole End Tap
1/8 NPT D x ↧
Price: $3.45 - Single Hole End Tap
5/16-18 D x 1.250" ↧
Price: $2.79 - Single Hole End Tap
3/8-16 D x 1.500" ↧
Price: $3.45 - Single Hole End Tap
7/16-14 D x 1.500" ↧
Price: $3.45 - Single Hole End Tap
M8 x 1.25 D x 1.250" ↧
Price: $2.79 - Single Hole End Tap
M10 x 1.50 D x 1.500" ↧
Price: $3.45
- .295" D accesshole
7050 | Price: $2.79
- 0° to 75° Mitercut
Price: $4.93
Counterbore
See here for details
In stock
Total Price
................................................................................................................................Max Length (inches) | 242.000000 |
Series | 15 Series |
Material | Aluminum |
Grade | 6005A – T61 |
Finish | Anodize |
Color | Black |
Drop Lock | 2° |
Moment of Inertia - IX | 0.2631"⁴ |
Moment of Inertia - IY | 0.2631"⁴ |
Surface Area | 1.138 Sq. In. |
Yield Strength | 35,000 psi. |
Modulus of Elasticity | 10,200,000 Lbs / Sq. In. |
Weight lbs | 0.1109 per inch |
Weight | 0.110900 |
1515-S-Black-FB is a 1.50” x 1.50” fractional 15 series square T-slot profile with four open T-slots, one on each 1.50” face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 1515-S-Black-FB profile is compatible with all 15 series fasteners. This profile is the most heavy-duty in the 1515 profile family and lends itself to clean room applications, guards, enclosures, or workstations.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
Max Length (inches) 242.000000 Series 15 Series Material Aluminum Grade 6005A – T61 Finish Anodize Color Black Drop Lock 2° Moment of Inertia - IX 0.2631"^4 Moment of Inertia - IY 0.2631"^4 Surface Area 1.138 Sq. In. Yield Strength 35,000 psi. Modulus of Elasticity 10,200,000 Lbs / Sq. In. Weight lbs 0.1109 per inch Weight 0.110900
-
- Description
1515-S-Black-FB is a 1.50” x 1.50” fractional 15 series square T-slot profile with four open T-slots, one on each 1.50” face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 1515-S-Black-FB profile is compatible with all 15 series fasteners. This profile is the most heavy-duty in the 1515 profile family and lends itself to clean room applications, guards, enclosures, or workstations.
