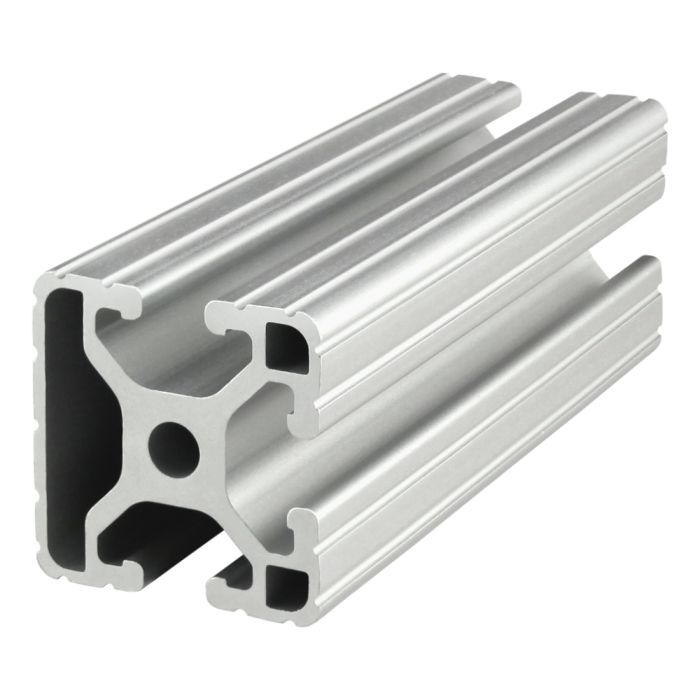

1.50” X 1.50” T-Slotted Profile - Three Adjacent Open T-Slots
1.50” X 1.50” T-Slotted Profile - Three Adjacent Open T-Slots
1503 is a 1.50” x 1.50” fractional 15 series square T-slot profile with three adjacent open T-slots, one on three 1.50” faces. The profile has align-a-grooves to assist in alignment when connecting profiles. The 1503 profile is compatible with 15 series fasteners. The closed face on this profile provide a clean, aesthetic look and lends itself to work spaces, displays or retail kiosks.
Price Per Inch
$0.681503 is a 1.50” x 1.50” fractional 15 series square T-slot profile with three adjacent open T-slots, one on three 1.50” faces. The profile has align-a-grooves to assist in alignment when connecting profiles. The 1503 profile is compatible with 15 series fasteners. The closed face on this profile provide a clean, aesthetic look and lends itself to work spaces, displays or retail kiosks.
-
End Taps
-
Counterbores
-
Access Holes
-
Mitercuts
No Applied Machining
- Single Hole End Tap
1/8 NPT D x ↧
Price: $3.45 - Single Hole End Tap
5/16-18 D x 1.250" ↧
Price: $2.79 - Single Hole End Tap
3/8-16 D x 1.500" ↧
Price: $3.45 - Single Hole End Tap
7/16-14 D x 1.500" ↧
Price: $3.45 - Single Hole End Tap
M8 x 1.25 D x 1.250" ↧
Price: $2.79 - Single Hole End Tap
M10 x 1.50 D x 1.500" ↧
Price: $3.45
- .295" D accesshole
7050 | Price: $2.79
- 0° to 75° Mitercut
Price: $4.93
Counterbore
See here for details
In stock
Total Price
$0.68Series | 15 Series |
Material | Aluminum |
Grade | 6105-T5 |
Finish | Anodize |
Color | Clear |
Drop Lock | 2° |
Moment of Inertia - IX | 0.1760"⁴ |
Moment of Inertia - IY | 0.1790"⁴ |
Surface Area | 0.862 Sq. In. |
Yield Strength | 35,000 psi. |
Modulus of Elasticity | 10,200,000 Lbs / Sq. In. |
Weight lbs | 0.0840 per inch |
Weight | 0.084000 |

1503 is a 1.50” x 1.50” fractional 15 series square T-slot profile with three adjacent open T-slots, one on three 1.50” faces. The profile has align-a-grooves to assist in alignment when connecting profiles. The 1503 profile is compatible with 15 series fasteners. The closed face on this profile provide a clean, aesthetic look and lends itself to work spaces, displays or retail kiosks.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series 15 Series Material Aluminum Grade 6105-T5 Finish Anodize Color Clear Drop Lock 2° Moment of Inertia - IX 0.1760"^4 Moment of Inertia - IY 0.1790"^4 Surface Area 0.862 Sq. In. Yield Strength 35,000 psi. Modulus of Elasticity 10,200,000 Lbs / Sq. In. Weight lbs 0.0840 per inch Weight 0.084000
-
- Description
1503 is a 1.50” x 1.50” fractional 15 series square T-slot profile with three adjacent open T-slots, one on three 1.50” faces. The profile has align-a-grooves to assist in alignment when connecting profiles. The 1503 profile is compatible with 15 series fasteners. The closed face on this profile provide a clean, aesthetic look and lends itself to work spaces, displays or retail kiosks.
