14170
30 Series 2 Way - Light Squared Corner Connector
30 Series 2 Way - Light Squared Corner Connector

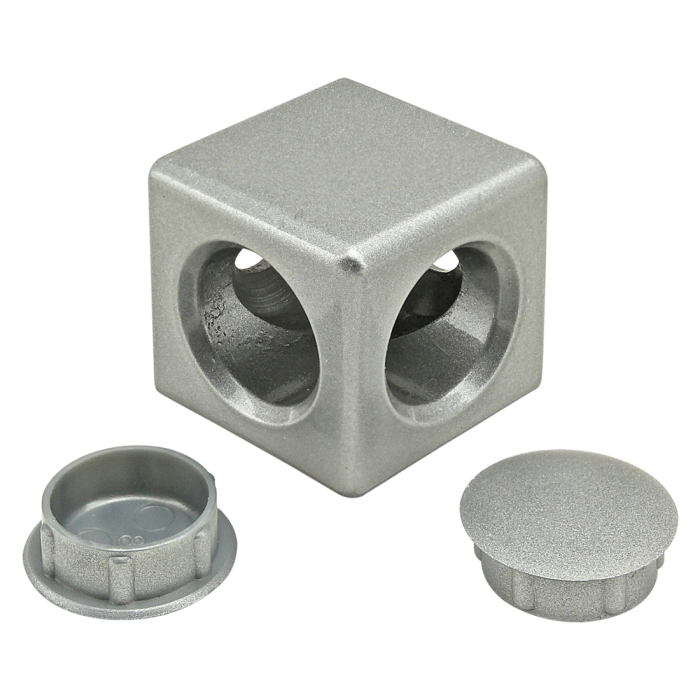

The 2 way - light squared corner connector is a die-cast external fastening method that is typically used to create a squared corner connection between two profiles. The fastener is lightweight and has two access holes; it includes the cover caps for the holes, to provide a finished look. The 2 way - light squared corner connector requires an end tap machining service on the mating profiles. The suggested hardware can be found on the "Suggested Hardware" tab.
The 2 way - light squared corner connector is a die-cast external fastening method that is typically used to create a squared corner connection between two profiles. The fastener is lightweight and has two access holes; it includes the cover caps for the holes, to provide a finished look. The 2 way - light squared corner connector requires an end tap machining service on the mating profiles. The suggested hardware can be found on the "Suggested Hardware" tab.
| ESD Safe | Yes |
| Series | 30 Series |
| Material | Aluminum |
| Finish | Lacquered |
| Cap | Included |
| A | 13.50mm |
| B | 3.00mm |
| C | 9.00mm |
| D | 22.20mm |
| E | 3.50mm |
| F | 8.25mm |
| G | 30.00mm |
| H | 15.00mm |
| J | 15.00mm |
| K | 17.80mm |
| Weight | 0.113200 |
The 2 way - light squared corner connector is a die-cast external fastening method that is typically used to create a squared corner connection between two profiles. The fastener is lightweight and has two access holes; it includes the cover caps for the holes, to provide a finished look. The 2 way - light squared corner connector requires an end tap machining service on the mating profiles. The suggested hardware can be found on the "Suggested Hardware" tab.
Mount to Profile End
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 11-8720 | 2 | M8 x 20.00mm Flat Head Socket Cap Screw (FHSCS) |
Product Specs
- Product Details
-
ESD Safe Yes Series 30 Series Material Aluminum Finish Lacquered Cap Included A 13.50mm B 3.00mm C 9.00mm D 22.20mm E 3.50mm F 8.25mm G 30.00mm H 15.00mm J 15.00mm K 17.80mm Weight 0.113200
-
- Description
The 2 way - light squared corner connector is a die-cast external fastening method that is typically used to create a squared corner connection between two profiles. The fastener is lightweight and has two access holes; it includes the cover caps for the holes, to provide a finished look. The 2 way - light squared corner connector requires an end tap machining service on the mating profiles. The suggested hardware can be found on the "Suggested Hardware" tab.
-
Sugg. Hardware
Mount to Profile End
Series Part Number Qty Description 11-8720 2 M8 x 20.00mm Flat Head Socket Cap Screw (FHSCS)
-
