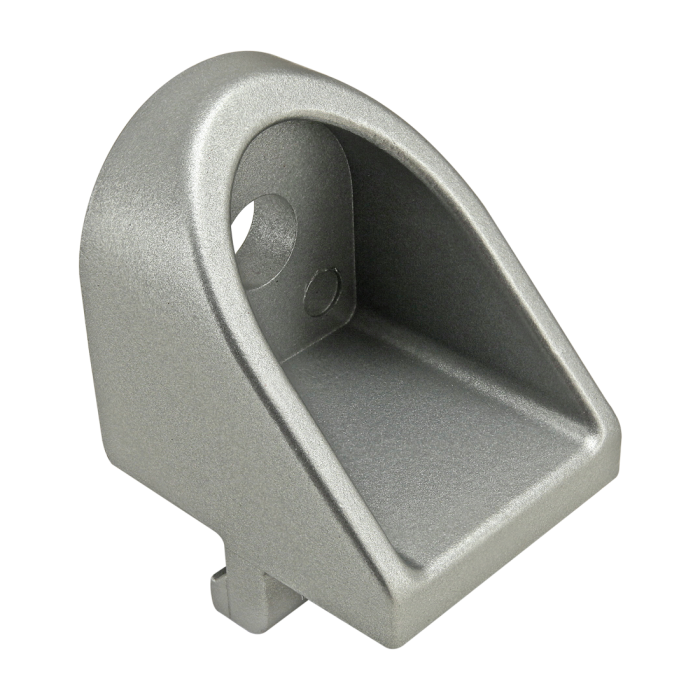

40 Series Economy Angle Clamp Block
40 Series Economy Angle Clamp Block
The economy angle clamp block is commonly used to connect profiles at variable angles and provide a large degree of adjustability. The tab grips into the mating profile to help align and hold the clamp. The economy angle clamp block requires no machining services. The suggested hardware can be found on the "Suggested Hardware" tab.
The economy angle clamp block is commonly used to connect profiles at variable angles and provide a large degree of adjustability. The tab grips into the mating profile to help align and hold the clamp. The economy angle clamp block requires no machining services. The suggested hardware can be found on the "Suggested Hardware" tab.
| ESD Safe | Yes |
| Series | 40 Series |
| Material | Zinc |
| Process | Die Cast |
| Finish | Powder Coat |
| A | 32.00mm |
| B | 36.00mm |
| C | 45.00mm |
| D | 10.00mm |
| E | 6.00mm |
| F | 15.90mm |
| G | 5.00mm |
| H | 9.00mm |
| J | 29.00mm |
| Weight | 0.226200 |
The economy angle clamp block is commonly used to connect profiles at variable angles and provide a large degree of adjustability. The tab grips into the mating profile to help align and hold the clamp. The economy angle clamp block requires no machining services. The suggested hardware can be found on the "Suggested Hardware" tab.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 75-3625 | 1 | Bolt Assembly: M8 x 16.00mm Black SHCS with Self-Aligning Slide-In T-Nut - Bright Zinc |
Product Specs
- Product Details
-
ESD Safe Yes Series 40 Series Material Zinc Process Die Cast Finish Powder Coat A 32.00mm B 36.00mm C 45.00mm D 10.00mm E 6.00mm F 15.90mm G 5.00mm H 9.00mm J 29.00mm Weight 0.226200
-
- Description
The economy angle clamp block is commonly used to connect profiles at variable angles and provide a large degree of adjustability. The tab grips into the mating profile to help align and hold the clamp. The economy angle clamp block requires no machining services. The suggested hardware can be found on the "Suggested Hardware" tab.
-
Sugg. Hardware
Mount to T-Slot
Series Part Number Qty Description 75-3625 1 Bolt Assembly: M8 x 16.00mm Black SHCS with Self-Aligning Slide-In T-Nut - Bright Zinc
-
