14112

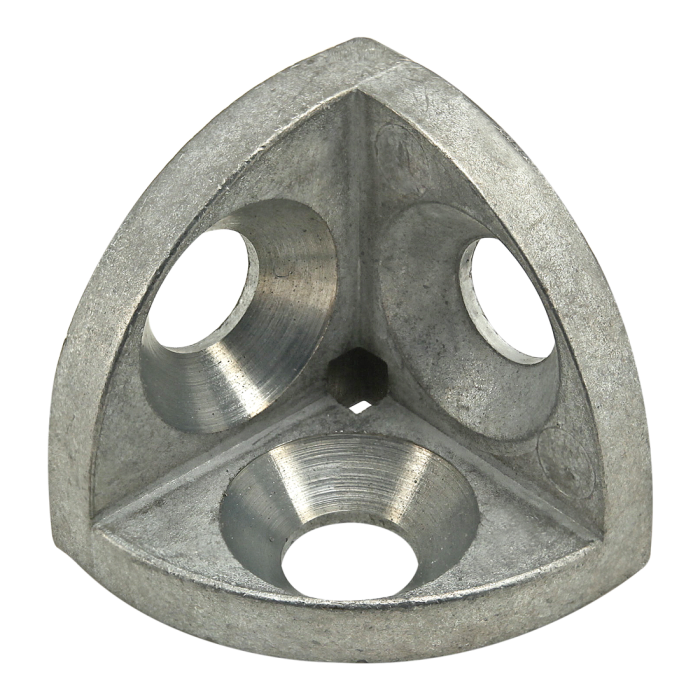

30 Series 3 Way - Rounded Corner Bracket
30 Series 3 Way - Rounded Corner Bracket
The 3 way - rounded corner bracket is a die-cast external fastening method that is typically used to create an outside corner connection between three profiles. It offers stability and can also be reused and repositioned. The simplicity of this bracket makes it easy to connect multiple profiles. The 3 way - rounded corner bracket requires an end tap machining service on each of the connecting profiles. The suggested hardware can be found on the "Suggested Hardware" tab.
The 3 way - rounded corner bracket is a die-cast external fastening method that is typically used to create an outside corner connection between three profiles. It offers stability and can also be reused and repositioned. The simplicity of this bracket makes it easy to connect multiple profiles. The 3 way - rounded corner bracket requires an end tap machining service on each of the connecting profiles. The suggested hardware can be found on the "Suggested Hardware" tab.
| ESD Safe | Yes |
| Series | 30 Series |
| Material | Zinc |
| Finish | Natural |
| A | 28.00mm |
| B | 28.00mm |
| C | 5.00mm |
| D | 9.00mm |
| E | 15.00mm |
| F | 23.00mm |
| G | 15.00mm |
| H | 2.20mm |
| J | 11.00mm |
| K | 8.00mm |
| Weight | 0.081000 |
The 3 way - rounded corner bracket is a die-cast external fastening method that is typically used to create an outside corner connection between three profiles. It offers stability and can also be reused and repositioned. The simplicity of this bracket makes it easy to connect multiple profiles. The 3 way - rounded corner bracket requires an end tap machining service on each of the connecting profiles. The suggested hardware can be found on the "Suggested Hardware" tab.
Mount to Profile End
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 11-8716 | 3 | M8 x 16.00mm Flat Head Socket Cap Screw (FHSCS) |
Product Specs
- Product Details
-
ESD Safe Yes Series 30 Series Material Zinc Finish Natural A 28.00mm B 28.00mm C 5.00mm D 9.00mm E 15.00mm F 23.00mm G 15.00mm H 2.20mm J 11.00mm K 8.00mm Weight 0.081000
-
- Description
The 3 way - rounded corner bracket is a die-cast external fastening method that is typically used to create an outside corner connection between three profiles. It offers stability and can also be reused and repositioned. The simplicity of this bracket makes it easy to connect multiple profiles. The 3 way - rounded corner bracket requires an end tap machining service on each of the connecting profiles. The suggested hardware can be found on the "Suggested Hardware" tab.
-
Sugg. Hardware
Mount to Profile End
Series Part Number Qty Description 11-8716 3 M8 x 16.00mm Flat Head Socket Cap Screw (FHSCS)
-
