Central Connector: Vertical Orientation
Central Connector: Vertical Orientation

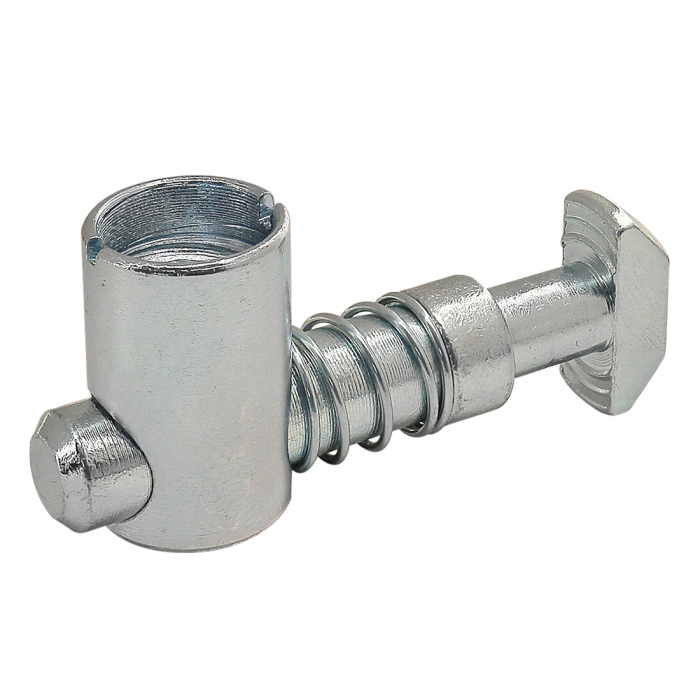

The central connector is an assembly comprised of a cam, conical set screw, spring, and T-stud. It is a strong internal fastening method, offering a long-lasting connection. The central connector can be used when profile ends are captivated and it provides infinite positioning along the mating profile’s T-slot, allowing a large degree of adjustability. The central connector is a 90 degree, hidden, aesthetic connection. This connection method requires a central connector profile milling machining service.
The central connector is an assembly comprised of a cam, conical set screw, spring, and T-stud. It is a strong internal fastening method, offering a long-lasting connection. The central connector can be used when profile ends are captivated and it provides infinite positioning along the mating profile’s T-slot, allowing a large degree of adjustability. The central connector is a 90 degree, hidden, aesthetic connection. This connection method requires a central connector profile milling machining service.
| ESD Safe | Yes |
| Series | 15 Series, 40 Series |
| Orientation | Vertical |
| Spring | Yes |
| Material | Steel |
| A | 2.047" |
| B | 1.594" |
| C | .374" |
| D | .590" |
| E | .444" |
| F | .307" |
| G | .709" |
| H | .945" |
| J | .748" |
| K | .217" |
| L | M12 x 12 |
| Weight | 0.107000 |
The central connector is an assembly comprised of a cam, conical set screw, spring, and T-stud. It is a strong internal fastening method, offering a long-lasting connection. The central connector can be used when profile ends are captivated and it provides infinite positioning along the mating profile’s T-slot, allowing a large degree of adjustability. The central connector is a 90 degree, hidden, aesthetic connection. This connection method requires a central connector profile milling machining service.
Product Specs
- Product Details
-
ESD Safe Yes Series 15 Series, 40 Series Orientation Vertical Spring Yes Material Steel A 2.047" B 1.594" C .374" D .590" E .444" F .307" G .709" H .945" J .748" K .217" L M12 x 12 Weight 0.107000
-
- Description
The central connector is an assembly comprised of a cam, conical set screw, spring, and T-stud. It is a strong internal fastening method, offering a long-lasting connection. The central connector can be used when profile ends are captivated and it provides infinite positioning along the mating profile’s T-slot, allowing a large degree of adjustability. The central connector is a 90 degree, hidden, aesthetic connection. This connection method requires a central connector profile milling machining service.
-
