13148

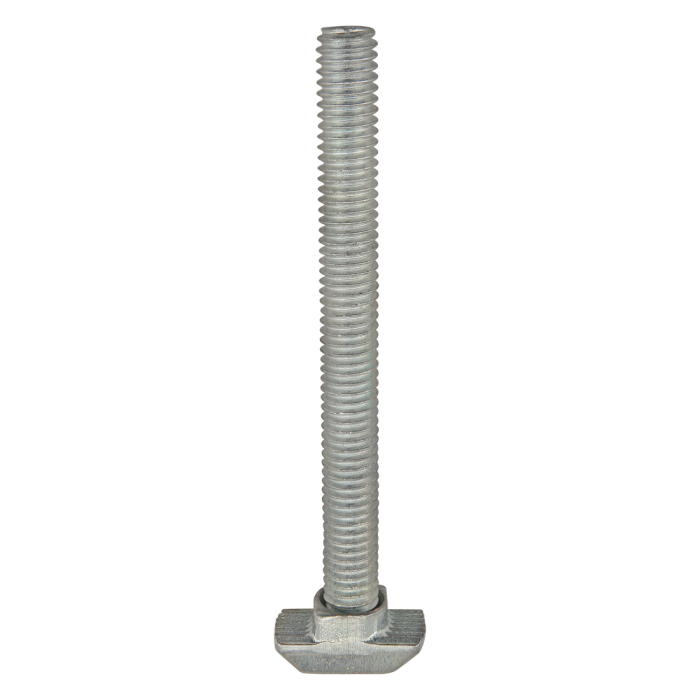

M6 x 60.00mm Drop-In T-Slot Stud Assembly
M6 x 60.00mm Drop-In T-Slot Stud Assembly
Series | 15 Series, 40 Series |
Material | Steel |
Finish | Zinc |
Color | Bright |
A | 15.75mm |
B | 7.75mm |
C | 4.50mm |
D (Length) | 60.00mm |
E | 7.80mm |
F | 3.00mm |
G (Thread) | M6 x 1.0 |
Weight | 0.032000 |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
