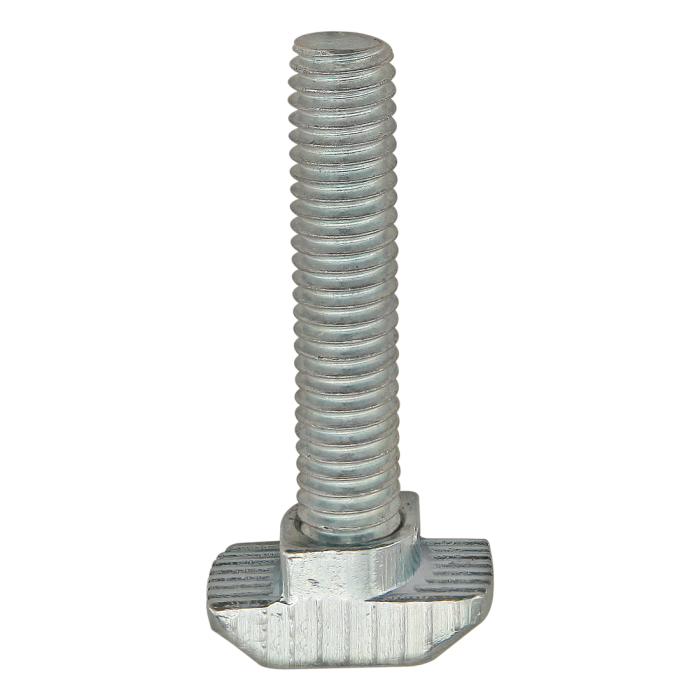

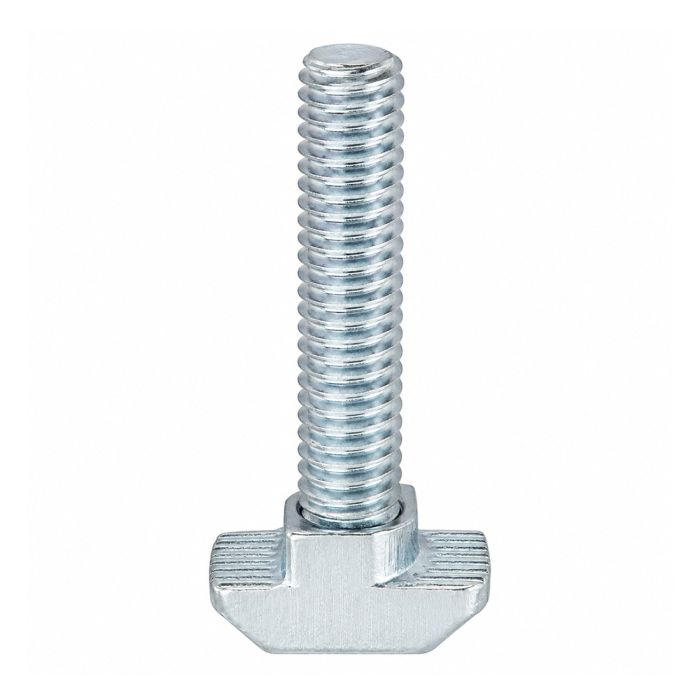

Product Specs

• Product Details
  •

    Series	15 Series, 40 Series
    Material	Steel
    Finish	Zinc
    Color	Bright
    A	15.75mm
    B	7.75mm
    C	4.50mm
    D (Length)	30.00mm
    E	7.80mm
    F	3.00mm
    G (Thread)	M6 x 1.0
    Weight	0.021000
