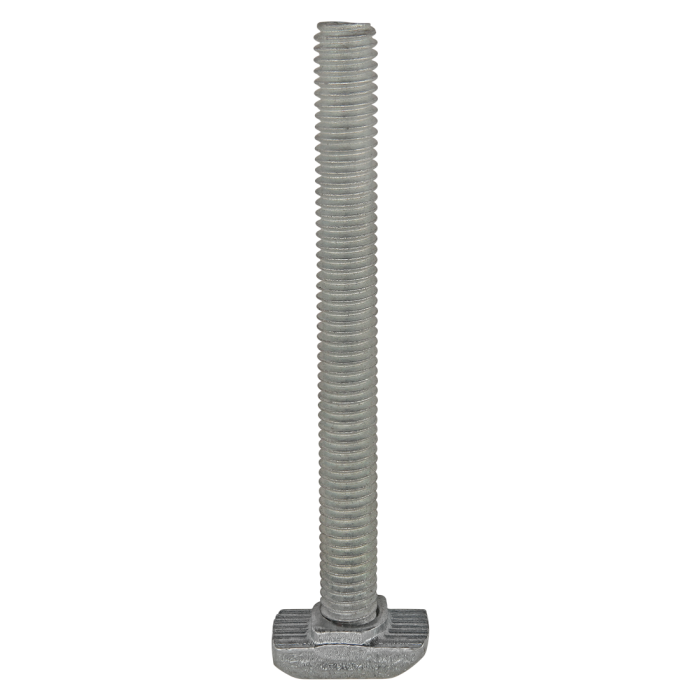

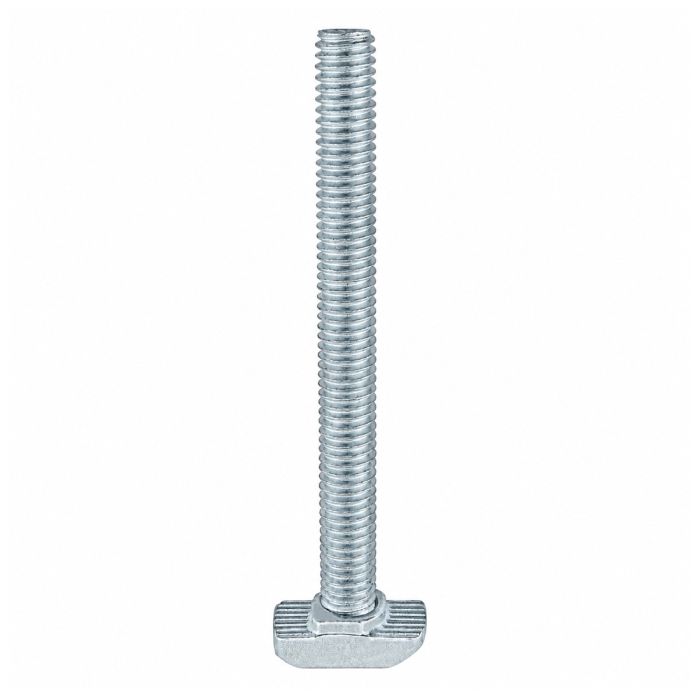

13142

Product Specs

• Product Details
  •

    Series	30 Series
    Material	Steel
    Finish	Zinc
    Color	Bright
    A	16.00mm
    B	7.70mm
    C	4.50mm
    D (Length)	60.00mm
    E	7.70mm
    F	1.50mm
    G (Thread)	M6 x 1.0
    Weight	0.030000
