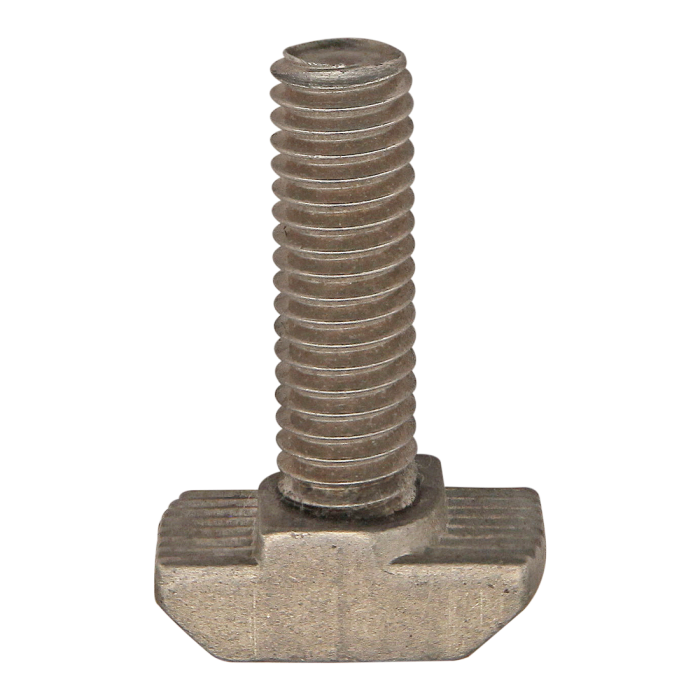

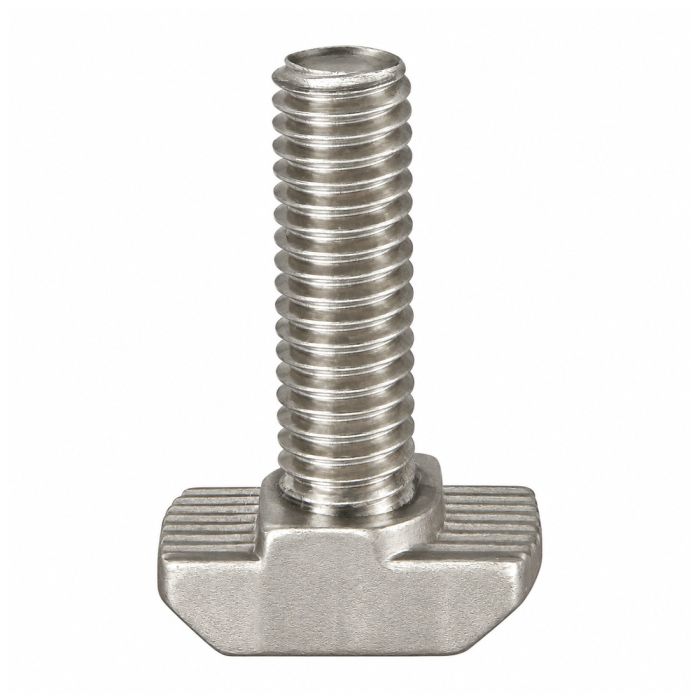

13135

Product Specs

• Product Details
  •

    Series	30 Series
    Material	Stainless Steel
    Finish	Stainless
    Color	N/A
    A	16.00mm
    B	7.70mm
    C	4.50mm
    D (Length)	20.00mm
    E	7.70mm
    F	1.50mm
    G (Thread)	M6 x 1.0
    Weight	0.017000
