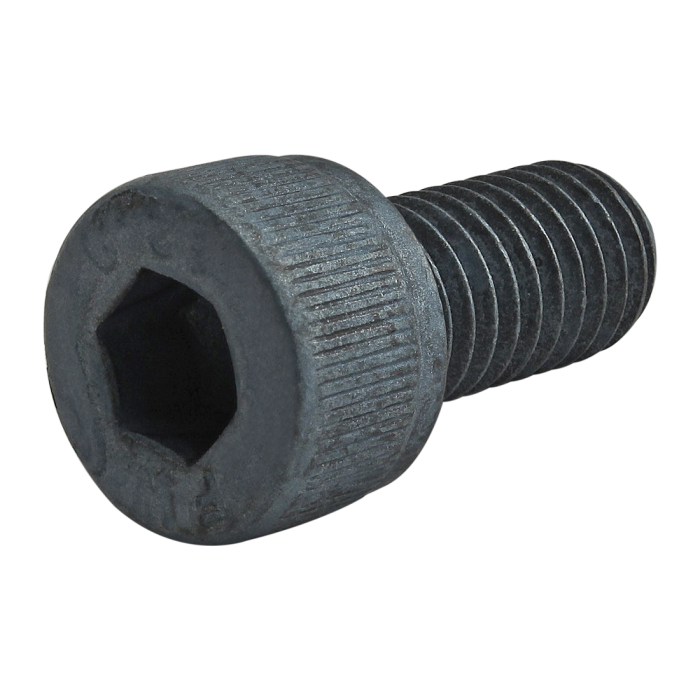

13-8516

Product Specs

• Product Details
  •

    Series	Metric
    Material	Steel
    Finish	Zinc
    Color	Blue
    A	12.87mm
    B	6.00mm
    C	7.82mm
    D (Length)	16.00mm
    E (Thread)	M8 X 1.25
    Thread Length	Full Thread
    Weight	0.025000
