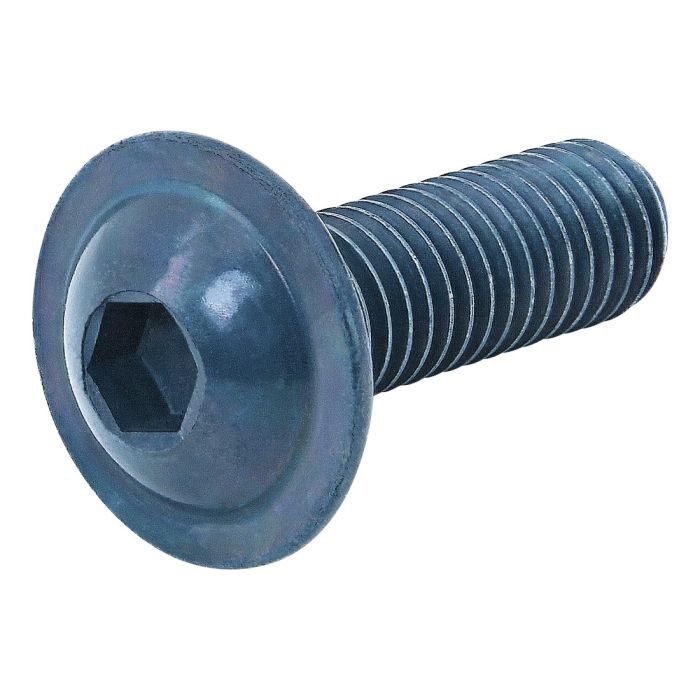

13-8425

Product Specs

• Product Details
  •

    Series	Metric
    Material	Steel
    Finish	Zinc
    Color	Blue
    A	17.45mm
    B	5.00mm
    C	4.25mm
    D (Length)	25.00mm
    E	1.38mm
    F (Thread)	M8 X 1.25
    Thread Length	Full Thread
    Weight	0.009000
