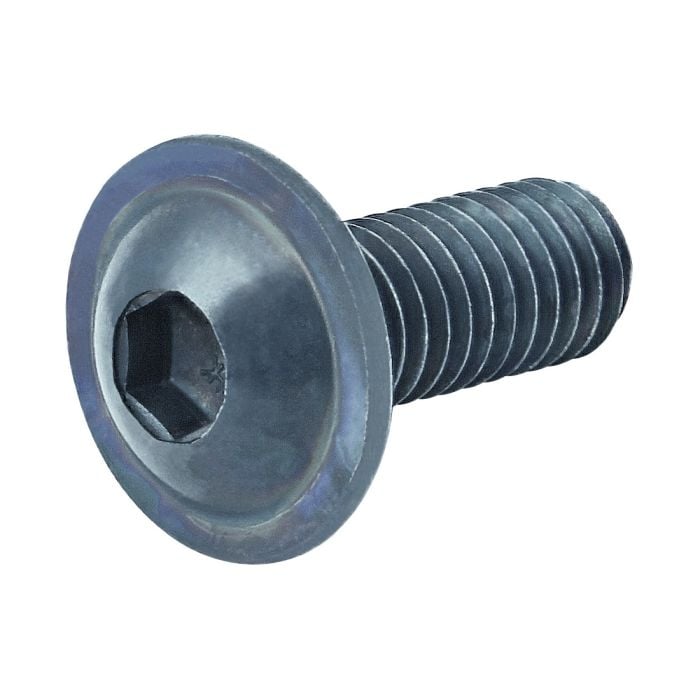

Product Specs

• Product Details
  •

    Series	Metric
    Material	Steel
    Finish	Zinc
    Color	Blue
    A	13.25mm
    B	4.00mm
    C	3.15mm
    D (Length)	16.00mm
    E	1.10mm
    F (Thread)	M6 X 1.0
    Thread Length	Full Thread
    Weight	0.010000
