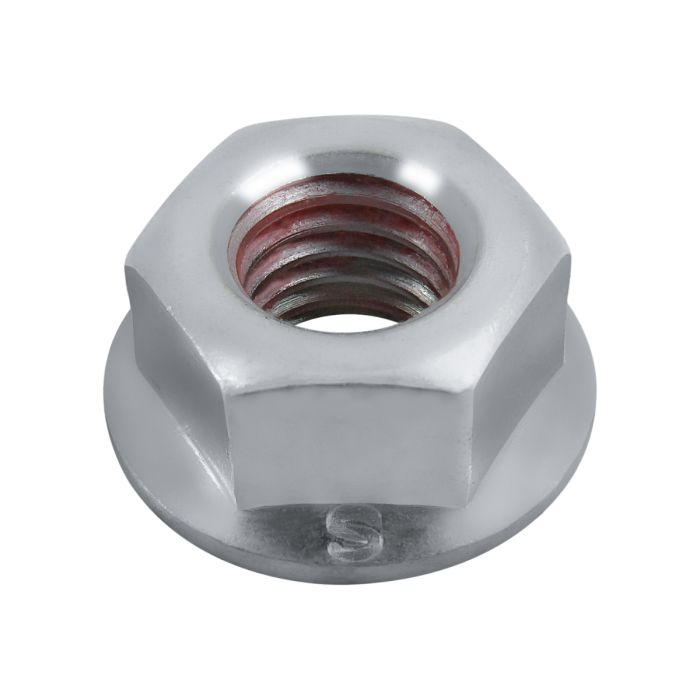

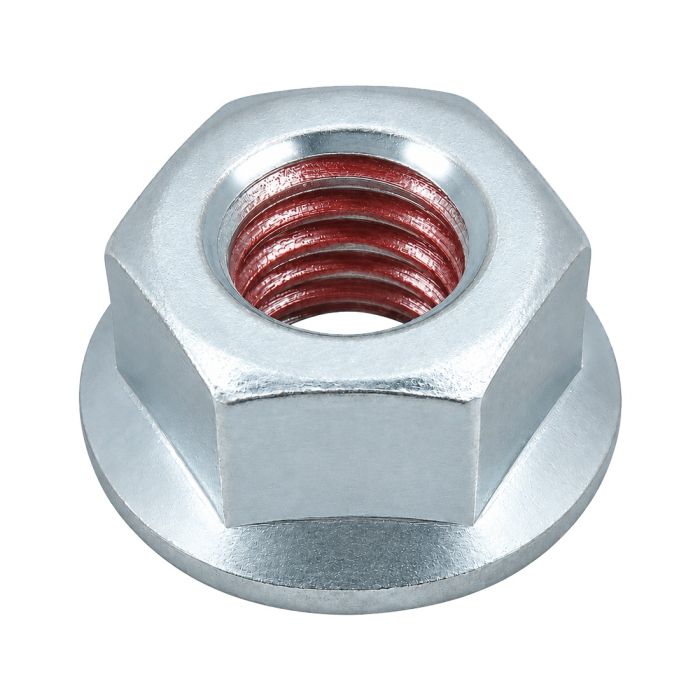

13-3758

Product Specs

• Product Details
  •

    Series	Metric, Ready Tube
    Material	Steel
    Grade	Class 8
    Finish	Zinc
    Color	Bright Blue
    Thread Lock	Thread Lock Patch
    A	17.90mm
    B	13.00mm
    C	M8 X 1.25
    D	1.20mm
    E	4.50mm
    F	8.00mm
    Weight	0.015000

• CAD Files

  • ** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.

    Generate
