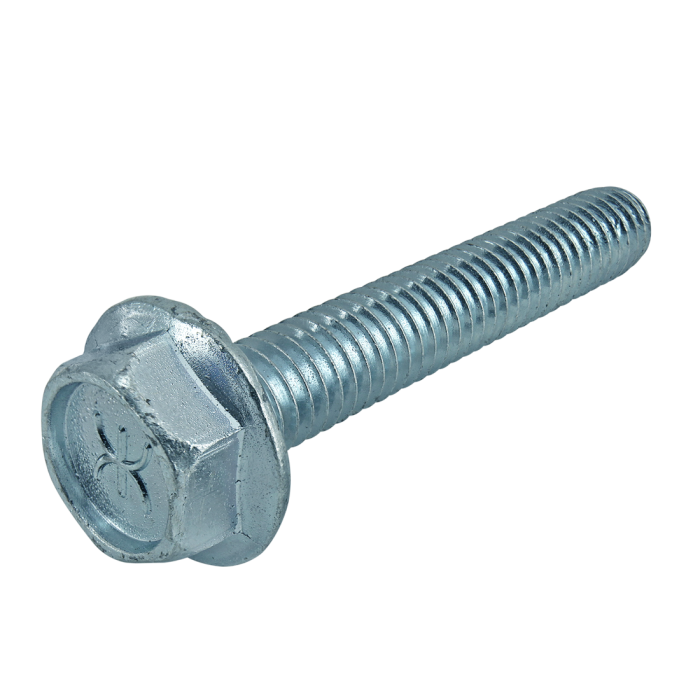

13-3753

Product Specs

• Product Details
  •

    Series	Metric
    Material	Steel
    Finish	Zinc
    Color	Bright Blue
    A	17.40mm
    B	12.00mm
    C	8.10mm
    D (Length)	50.00mm
    E (Thread)	M8 X 1.0
    Thread Length	22.00mm
    Weight	0.055000
