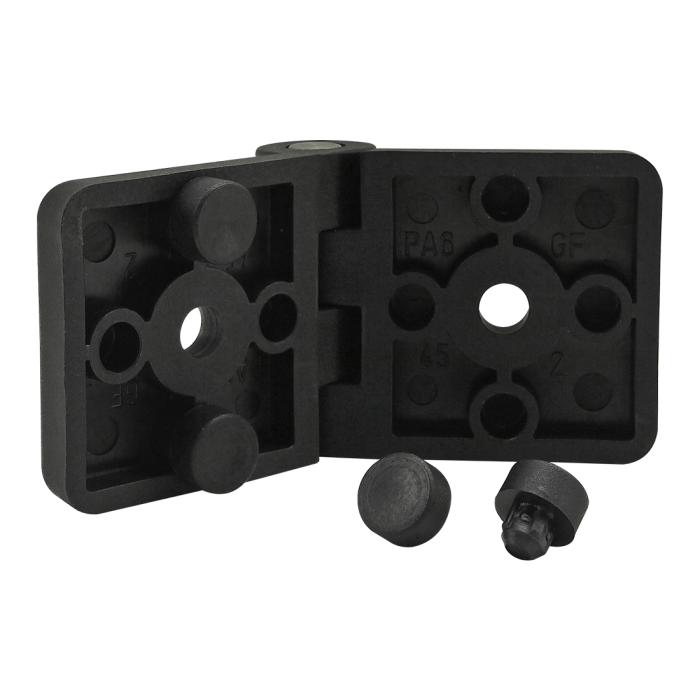

45 Series 2 Hole - Standard Plastic Hinge
45 Series 2 Hole - Standard Plastic Hinge
The 2 hole - standard plastic hinge is made of fiberglass-reinforced black nylon with a stainless steel pin. It is commonly used to connect plastic panels and light weight doors to T-slot profiles.
| Series | 45 Series |
| Material | Nylon PA Glass Fiber Reinforced |
| Grade | PA6GF30 |
| Color | Black/Bolt Plain |
| Process | Injection Molded |
| Max Load | 10 Nm / 7.3 ft-Lbs |
| A | 50.00mm |
| B | 40.00mm |
| C | 20.00mm |
| D | 45.00mm |
| E | 25.00mm |
| F | 6.50mm |
| G | 9.00mm |
| H | 8.00mm |
| J | 10.00mm |
| K | 8.50mm |
| Weight | 0.104000 |
The 2 hole - standard plastic hinge is made of fiberglass-reinforced black nylon with a stainless steel pin. It is commonly used to connect plastic panels and light weight doors to T-slot profiles.
Per Leaf Mount to T-slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 75-3588 | 1 | Bolt Assembly: M6 x 20.00mm Black FHSCS with Standard Drop-In T-Nut - Bright Zinc |
Per Leaf Mount to Panel LTE .250" / 6mm
| Series | Part Number | Qty | Description |
|---|---|---|---|
| 75-3589 | 1 | Bolt Assembly: M6 x 20.00mm Black FHSCS with Washer and Hex Nut - Black Zinc |
Product Specs
- Product Details
-
Series 45 Series Material Nylon PA Glass Fiber Reinforced Grade PA6GF30 Color Black/Bolt Plain Process Injection Molded Max Load 10 Nm / 7.3 ft-Lbs A 50.00mm B 40.00mm C 20.00mm D 45.00mm E 25.00mm F 6.50mm G 9.00mm H 8.00mm J 10.00mm K 8.50mm Weight 0.104000
-
- Description
The 2 hole - standard plastic hinge is made of fiberglass-reinforced black nylon with a stainless steel pin. It is commonly used to connect plastic panels and light weight doors to T-slot profiles.
