12168

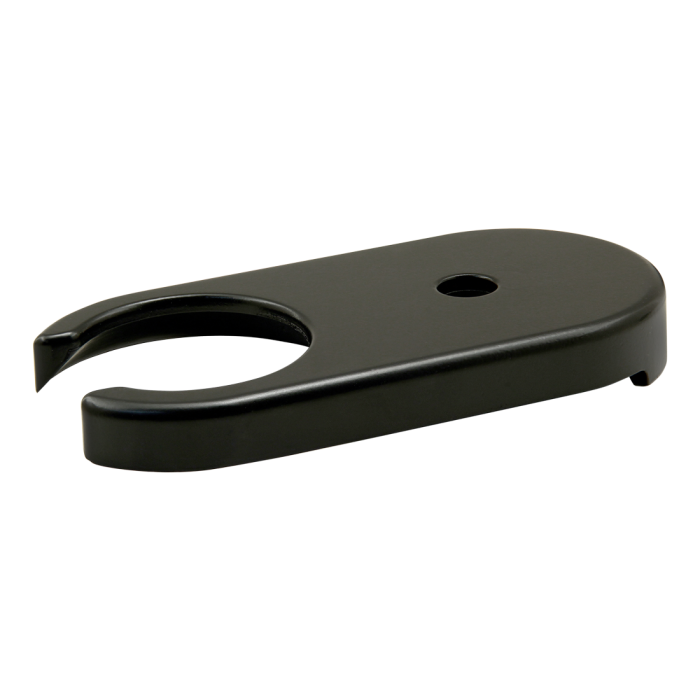

Trapezoid Base Anchor
Trapezoid Base Anchor
The trapezoid base anchor is used with the swivel foot trapezoid base to securely hold an application in place when used with wedge floor anchors. It is commonly used when adding to a preexisting build or in instances where the application will need to be moved, for example, when maintenance will be required. It enables repositioning without having to detach the anchor.
The trapezoid base anchor is used with the swivel foot trapezoid base to securely hold an application in place when used with wedge floor anchors. It is commonly used when adding to a preexisting build or in instances where the application will need to be moved, for example, when maintenance will be required. It enables repositioning without having to detach the anchor.
| ESD Safe | No |
| Series | Fractional, Metric |
| Material | Die Cast Zinc |
| Process | Die Cast |
| Finish | Powder Coated |
| Color | Black |
| A | 2.126" |
| B | .551" |
| C | 2.992" |
| D | 2.756" |
| E | 1.890" |
| F | 5.905" |
| G | .787" |
| H | 45º |
| J | .590" |
| Weight | 1.080000 |
The trapezoid base anchor is used with the swivel foot trapezoid base to securely hold an application in place when used with wedge floor anchors. It is commonly used when adding to a preexisting build or in instances where the application will need to be moved, for example, when maintenance will be required. It enables repositioning without having to detach the anchor.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe No Series Fractional, Metric Material Die Cast Zinc Process Die Cast Finish Powder Coated Color Black A 2.126" B .551" C 2.992" D 2.756" E 1.890" F 5.905" G .787" H 45º J .590" Weight 1.080000
-
- Description
The trapezoid base anchor is used with the swivel foot trapezoid base to securely hold an application in place when used with wedge floor anchors. It is commonly used when adding to a preexisting build or in instances where the application will need to be moved, for example, when maintenance will be required. It enables repositioning without having to detach the anchor.
-
