15 & 40 Series 4 Hole - Standard Plastic Hinge

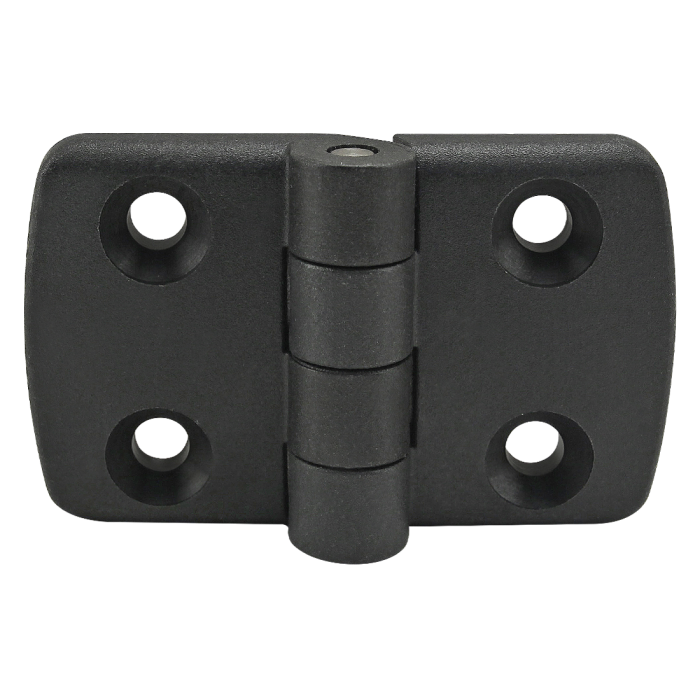

The 4 hole - standard plastic hinge is made of fiberglass-reinforced black nylon with a stainless steel pin. It is commonly used to connect plastic panels and lightweight doors to T-slot profiles. Additional Information: The gap distance between profiles is .075” (1.90mm).
| Series | 15 Series, 40 Series |
| Material | Nylon PA Glass Fiber Reinforced |
| Color | Black |
| Process | Injection Molded |
| Max Load | 40 Nm / 30 ft-Lbs. |
| A | 45.00mm |
| B | 48.00mm |
| C | 28.00mm |
| D | 38.50mm |
| E | 22.50mm |
| F | 6.60mm |
| G | 8.90mm |
| H | 7.00mm |
| J | n/a |
| K | 7.40mm |
| Weight | 0.089000 |
The 4 hole - standard plastic hinge is made of fiberglass-reinforced black nylon with a stainless steel pin. It is commonly used to connect plastic panels and lightweight doors to T-slot profiles. Additional Information: The gap distance between profiles is .075” (1.90mm).
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
 | 3409 | 2 | Bolt Assembly: 1/4-20 x .625" Black FHSCS with Standard Drop-In T-Nut - Bright Zinc | |
 | 75-3628 | 2 | Bolt Assembly: M6 x 18.00mm Black FHSCS with Standard Drop-In T-Nut - Bright Zinc |
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
| 3417 | 2 | Bolt Assembly: 1/4-20 x .750" Black FHSCS with Washer and Hex Nut - Black Zinc | |
| 75-3589 | 2 | Bolt Assembly: M6 x 20.00mm Black FHSCS with Washer and Hex Nut - Black Zinc |
