12117

Product Specs

• Product Details
  •

    ESD Safe	No
    Series	15 Series
    Material	Nylon PA Glass Fiber Reinforced
    Color	Black
    Process	Injection Molded
    Max Load	25 ft-Lbs.
    A	40.00mm
    B	48.00mm
    C	28.00mm
    D	35.50mm
    E	20.00mm
    F	6.60mm
    G	8.90mm
    H	7.00mm
    J	8.00mm
    K	7.90mm
    Weight	0.087000

• Description

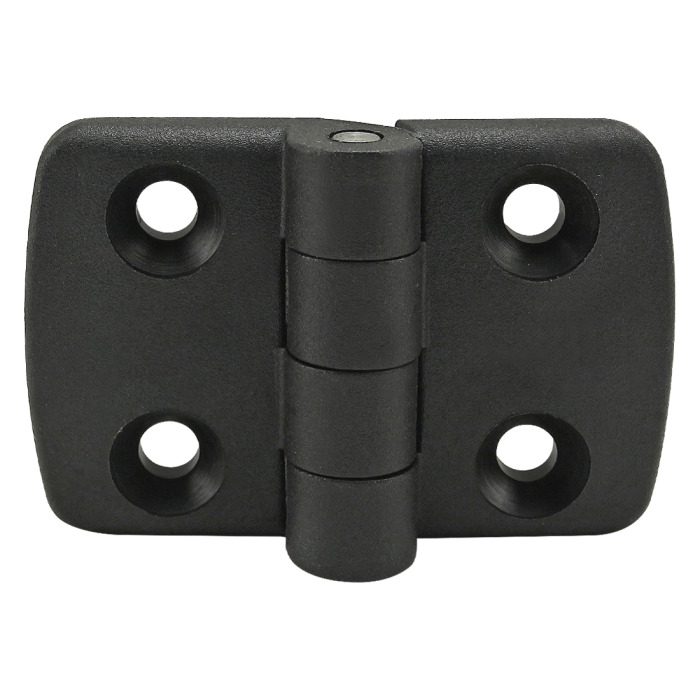

  • The 4 hole - standard plastic hinge is made of fiberglass-reinforced black nylon with a stainless steel pin. It is commonly used to connect plastic panels and lightweight doors to T-slot profiles. Additional Information: The gap distance between profiles is .075” (1.90mm).

• Sugg. Hardware

  • Per Leaf Mount to T-slot

    Series	Part Number	Qty	Description
    	3409	2	Bolt Assembly: 1/4-20 x .625" Black FHSCS with Standard Drop-In T-Nut - Bright Zinc

    Per Leaf Mount to Panel LTE .250" / 6mm

    Series	Part Number	Qty	Description
    	3417	2	Bolt Assembly: 1/4-20 x .750" Black FHSCS with Washer and Hex Nut - Black Zinc
