12114

Product Specs

• Product Details
  •

    ESD Safe	No
    Series	30 Series
    Orientation	Right
    Material	Nylon PA Glass Fiber Reinforced
    Grade	PA6GF30
    Color	Black
    Process	Injection Molded
    Max Load	25 Nm / 18 ft-Lbs
    Slot Tab	8.00mm
    A	35.00mm
    B	48.00mm
    C	28.00mm
    D	29.50mm
    E	17.50mm
    F	6.60mm
    G	8.90mm
    H	7.00mm
    J	7.20mm
    Weight	0.079000

• Description

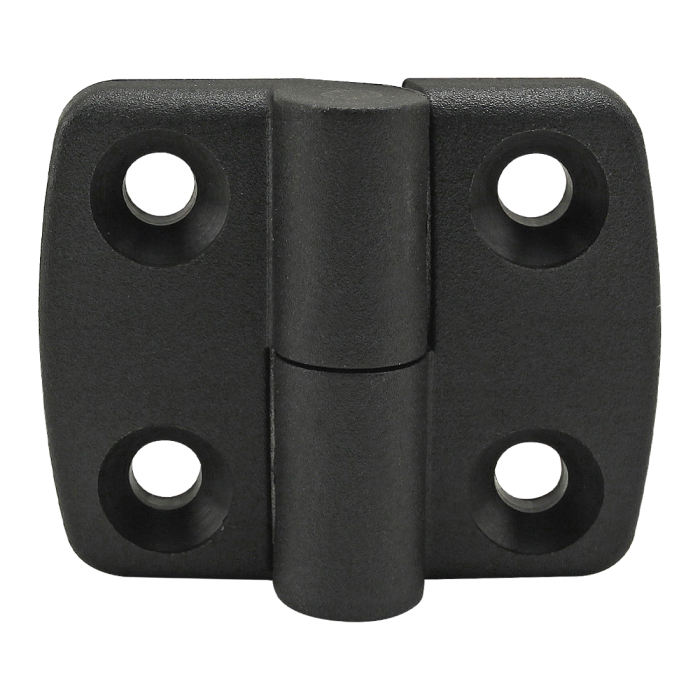

  • The 4-hole plastic lift-off hinge comes in both right and left hand options and is made of fiberglass-reinforced black nylon with a stainless steel pin. It is commonly used to connect plastic panels and lightweight doors to T-slot profiles and is available in options with slot tabs to assist with alignment.
• Sugg. Hardware

  • Per Leaf Mount to Panel

    Series	Part Number	Qty	Description
    	75-3589	2	Bolt Assembly: M6 x 20.00mm Black FHSCS with Washer and Hex Nut - Black Zinc

    Per Leaf Mount to T-slot

    Series	Part Number	Qty	Description
    	75-3585	2	Bolt Assembly: M6 x 14.00mm Black FHSCS with Standard Drop-In T-Nut - Bright Zinc
