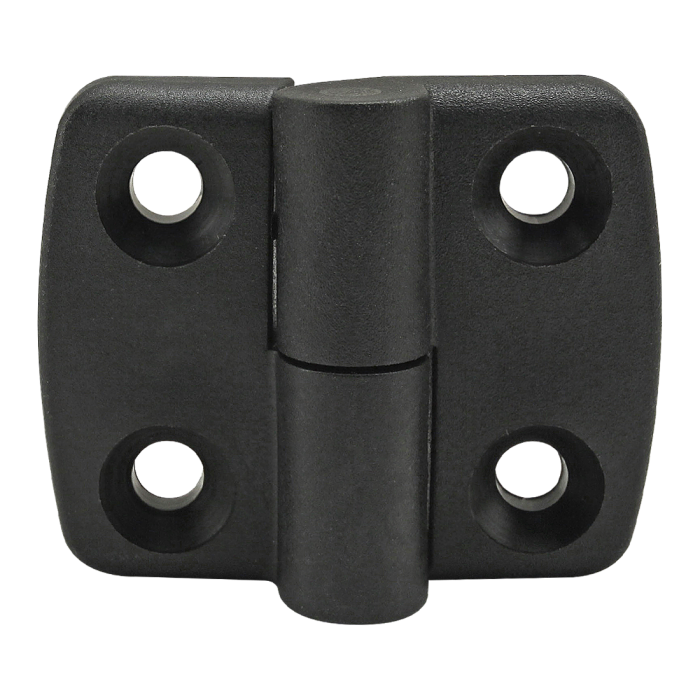

30 Series 4 Hole - Plastic Lift-Off Hinge: Left Hand Option
30 Series 4 Hole - Plastic Lift-Off Hinge: Left Hand Option
The 4-hole plastic lift-off hinge comes in both right and left hand options and is made of fiberglass-reinforced black nylon with a stainless steel pin. It is commonly used to connect plastic panels and lightweight doors to T-slot profiles and is available in options with slot tabs to assist with alignment. Additional Information: The gap distance between profiles is .075" (1.90mm).
The 4-hole plastic lift-off hinge comes in both right and left hand options and is made of fiberglass-reinforced black nylon with a stainless steel pin. It is commonly used to connect plastic panels and lightweight doors to T-slot profiles and is available in options with slot tabs to assist with alignment. Additional Information: The gap distance between profiles is .075" (1.90mm).
Total Price
................................................................................................................................| Series | 30 Series |
| Orientation | Left |
| Material | Nylon PA Glass Fiber Reinforced |
| Grade | PA6GF30 |
| Color | Black |
| Process | Injection Molded |
| Max Load | 25 Nm / 18 ft-Lbs. |
| Slot Tab | N/A |
| A | 35.00mm |
| B | 48.00mm |
| C | 28.00mm |
| D | 29.50mm |
| E | 17.50mm |
| F | 6.60mm |
| G | 8.90mm |
| H | 7.00mm |
| J | 8.50mm |
| Weight | 0.081000 |
The 4-hole plastic lift-off hinge comes in both right and left hand options and is made of fiberglass-reinforced black nylon with a stainless steel pin. It is commonly used to connect plastic panels and lightweight doors to T-slot profiles and is available in options with slot tabs to assist with alignment. Additional Information: The gap distance between profiles is .075" (1.90mm).
Per Leaf Mount to Panel
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 75-3589 | 2 | Bolt Assembly: M6 x 20.00mm Black FHSCS with Washer and Hex Nut - Black Zinc |
Per Leaf Mount to T-slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
| 75-3585 | 2 | Bolt Assembly: M6 x 14.00mm Black FHSCS with Standard Drop-In T-Nut - Bright Zinc |
Product Specs
- Product Details
-
Series 30 Series Orientation Left Material Nylon PA Glass Fiber Reinforced Grade PA6GF30 Color Black Process Injection Molded Max Load 25 Nm / 18 ft-Lbs. Slot Tab N/A A 35.00mm B 48.00mm C 28.00mm D 29.50mm E 17.50mm F 6.60mm G 8.90mm H 7.00mm J 8.50mm Weight 0.081000
-
- Description
The 4-hole plastic lift-off hinge comes in both right and left hand options and is made of fiberglass-reinforced black nylon with a stainless steel pin. It is commonly used to connect plastic panels and lightweight doors to T-slot profiles and is available in options with slot tabs to assist with alignment. Additional Information: The gap distance between profiles is .075" (1.90mm).
-
Sugg. Hardware
Per Leaf Mount to Panel
Series Part Number Qty Description 75-3589 2 Bolt Assembly: M6 x 20.00mm Black FHSCS with Washer and Hex Nut - Black Zinc Per Leaf Mount to T-slot
Series Part Number Qty Description 75-3585 2 Bolt Assembly: M6 x 14.00mm Black FHSCS with Standard Drop-In T-Nut - Bright Zinc
