    Series	30 Series
    Material	Nylon PA Glass Fiber Reinforced
    Color	Black
    Process	Injection Molded
    Max Load	30 Nm / 22 ft-Lbs.
    A	35.00mm
    B	48.00mm
    C	28.00mm
    D	29.50mm
    E	17.50mm
    F	6.60mm
    G	8.90mm
    H	7.00mm
    J	n/a
    K	8.40mm
    Weight	0.078000

• Description

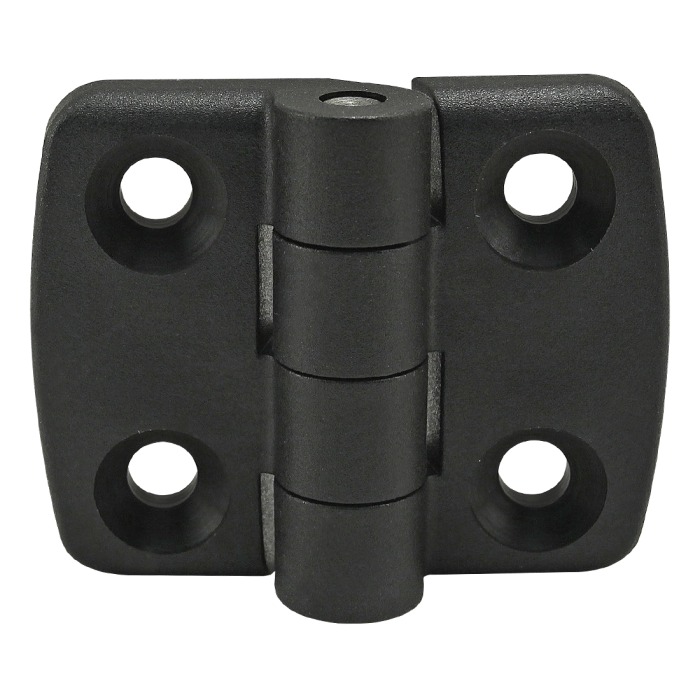

  • The 4 hole - standard plastic hinge is made of fiberglass-reinforced black nylon with a stainless steel pin. It is commonly used to connect plastic panels and lightweight doors to T-slot profiles. Additional Information: The gap distance between profiles is .075” (1.90mm).

• Sugg. Hardware

  • Per Leaf Mount to T-slot

    Series	Part Number	Qty	Description	Select Qty / Add To Cart
    	75-3585	2	Bolt Assembly: M6 x 14.00mm Black FHSCS with Standard Drop-In T-Nut - Bright Zinc

    Per Leaf Mount to Panel LTE .250" / 6mm

    Series	Part Number	Qty	Description	Select Qty / Add To Cart
    	75-3589	2	Bolt Assembly: M6 x 20.00mm Black FHSCS with Washer and Hex Nut - Black Zinc
