Product Specs

• Product Details
  •

    ESD Safe	No
    Series	10 Series, 25 Series, 30 Series
    Material	Stainless-Steel
    Finish	Stainless
    Color	Silver
    Process	Machined
    Max Load	300 Nm / 221 ft-Lbs.
    A	32.00mm
    B	50.00mm
    C	32.00mm
    D	25.00mm
    E	16.00mm
    F	6.40mm
    G	10.00mm
    Weight	0.328000

• Description

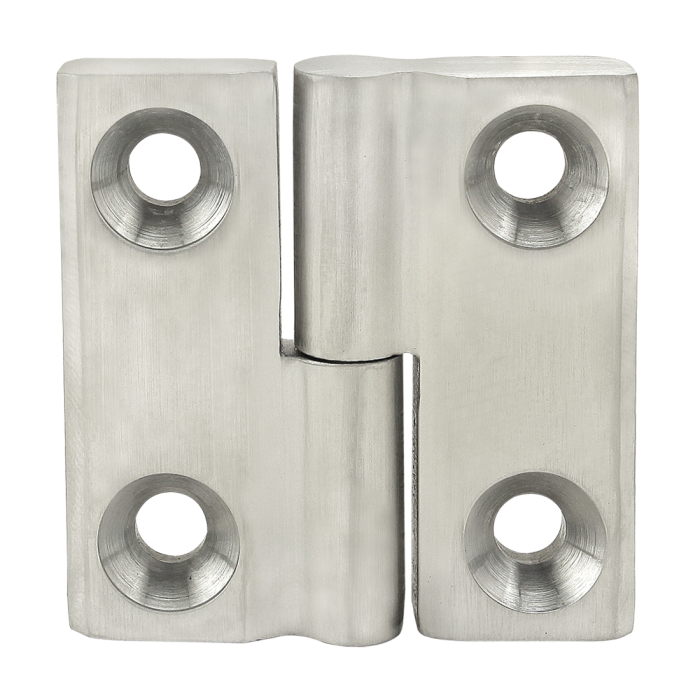

  • The 4 hole - dual hand lift-off hinge acts as both a right and left hand hinge. It is a stronger option that has a countersink on both sides to allow for right or left hand use. The 4 hole - dual hand lift-off hinge is commonly used to connect T-slot profiles.

• Sugg. Hardware

  • Mount to T-Slot

    Series	Part Number	Qty	Description
    	75-3647	4	Bolt Assembly: M6 x 16.00mm Black FHSCS with Roll-In T-Nut with Flex Handle - Bright Zinc
    	75-3591	4	Bolt Assembly: M6 x 16.00mm Black FHSCS with Standard Drop-In T-Nut - Bright Zinc
