12073

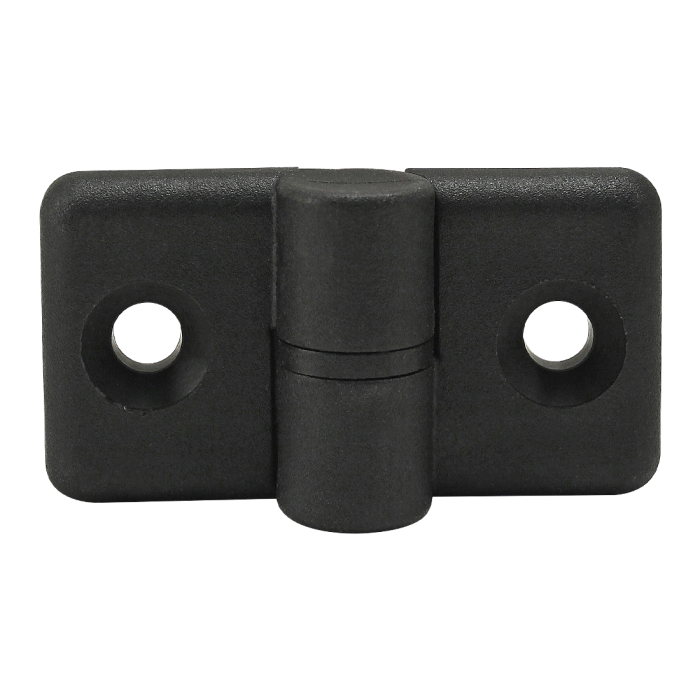

15 Series 2 Hole - Plastic Lift-Off Hinge: Right Hand Option
15 Series 2 Hole - Plastic Lift-Off Hinge: Right Hand Option
The 2-hole plastic lift-off hinge comes in both right and left hand options and is made of fiberglass-reinforced black nylon with a stainless steel pin. It is commonly used to connect plastic panels and lightweight doors to T-slot profiles. Additional Information: The gap distance between profiles is .075” (1.90mm).
The 2-hole plastic lift-off hinge comes in both right and left hand options and is made of fiberglass-reinforced black nylon with a stainless steel pin. It is commonly used to connect plastic panels and lightweight doors to T-slot profiles. Additional Information: The gap distance between profiles is .075” (1.90mm).
| ESD Safe | No |
| Series | 15 Series |
| Orientation | Right |
| Material | Nylon PA Glass Fiber Reinforced |
| Grade | PA6GF30 |
| Color | Black |
| Process | Injection Molded |
| Max Load | 20 ft-lbs. |
| A | 1.575" |
| B | 1.260" |
| C | .630" |
| D | 1.181" |
| E | .787" |
| F | .252" |
| G | .295" |
| H | .295" |
| J | .236" |
| K | .323" |
| Weight | 0.048000 |
The 2-hole plastic lift-off hinge comes in both right and left hand options and is made of fiberglass-reinforced black nylon with a stainless steel pin. It is commonly used to connect plastic panels and lightweight doors to T-slot profiles. Additional Information: The gap distance between profiles is .075” (1.90mm).
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 75-3628 | 2 | Bolt Assembly: M6 x 18.00mm Black FHSCS with Standard Drop-In T-Nut - Bright Zinc |
Product Specs
- Product Details
-
ESD Safe No Series 15 Series Orientation Right Material Nylon PA Glass Fiber Reinforced Grade PA6GF30 Color Black Process Injection Molded Max Load 20 ft-lbs. A 1.575" B 1.260" C .630" D 1.181" E .787" F .252" G .295" H .295" J .236" K .323" Weight 0.048000
-
- Description
The 2-hole plastic lift-off hinge comes in both right and left hand options and is made of fiberglass-reinforced black nylon with a stainless steel pin. It is commonly used to connect plastic panels and lightweight doors to T-slot profiles. Additional Information: The gap distance between profiles is .075” (1.90mm).
-
Sugg. Hardware
Mount to T-Slot
Series Part Number Qty Description 75-3628 2 Bolt Assembly: M6 x 18.00mm Black FHSCS with Standard Drop-In T-Nut - Bright Zinc
-
